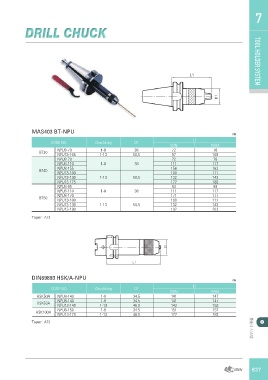

DRILL CHUCK TOOL HOLDER7

TOOL HOLDER SYSTEM

MAS403 BT-NPU ㎜

CODE NO. Chuchking D1 L1
1-8 38 MIN MAX
BT30 NPU8-70 1-13 50,5 72 78
BT40 NPU13-105 1-8 38 97 108
NPU8-70 72 78
BT50 NPU8-110 1-13 50,5 111 117
NPU8-155 156 162
NPU13-100 1-8 38 100 111
NPU13-130 132 143
NPU13-175 1-13 50,5 177 188
NPU8-85 83 89
NPU8-110 111 117
NPU8-170 171 177
NPU13-100 100 111
NPU13-130 132 143
NPU13-190 192 203

Taper : AT3

DIN69893 HSK/A-NPU ㎜

CODE NO. Chuchking D1 L1
1-8 34.5 MIN MAX
HSK50A NPU8-140 1-8 34.5 141 147
HSK63A NPU8-140 1-13 46.0 141 147
NPU13-140 1-8 34.5 142 153
HSK100A NPU8-150 1-13 46.0 151 157
NPU13-170 172 183

Taper : AT3 툴홀더 시스템
