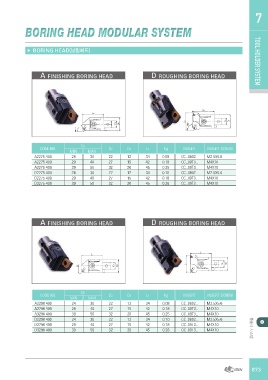

BORING HEAD MODULAR SYSTEM TOOL HOLDER7

▶ BORING HEAD(보링헤드) TOOL HOLDER SYSTEM

A FINISHING BORING HEAD D ROUGHING BORING HEAD

CODE NO. D1 D2 D3 L1 Kg INSERT INSERT SCREW
MIN MAX

A2275 400 24 30 22 12 34 0.08 CC..0602.. M2.5X5.6

A2275 409 29 40 27 15 42 0.18 CC..09T3.. M4X10

A3275 409 39 50 32 20 45 0.25 CC..09T3.. M4X10

D2275 400 24 30 22 12 34 0.10 CC..0602.. M2.5X5.6

D2275 409 29 40 27 15 42 0.18 CC..09T3.. M4X10

D3275 409 39 50 32 20 45 0.26 CC..09T3.. M4X10

A FINISHING BORING HEAD D ROUGHING BORING HEAD

CODE NO. D1 D2 D3 L1 Kg INSERT INSERT SCREW
MIN MAX

A2290 400 24 30 22 12 34 0.08 CC..0602.. M2.5X5.6

A2790 409 29 40 27 15 42 0.18 CC..09T3.. M4X10

A3290 409 39 50 32 20 45 0.25 CC..09T3.. M4X10

D2290 400 24 30 22 12 34 0.10 CC..0602.. M2.5X5.6 툴홀더 시스템

D2790 409 29 40 27 15 42 0.18 CC..09T3.. M4X10

D3290 409 39 50 32 20 45 0.26 CC..09T3.. M4X10

873
