TOOL HTOOOLLDHEOLRDER SYSTEM7

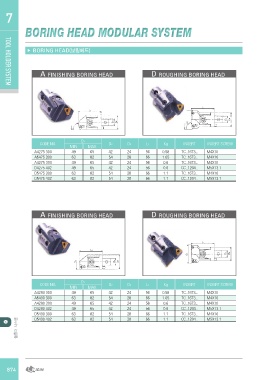

BORING HEAD MODULAR SYSTEM

▶ BORING HEAD(보링헤드)

A FINISHING BORING HEAD D ROUGHING BORING HEAD

CODE NO. D1 D2 D3 L1 Kg INSERT INSERT SCREW
MIN MAX

A4275 300 49 65 42 24 56 0.58 TC..16T3.. M4X10

A5475 300 63 82 54 28 66 1.05 TC..16T3.. M4X10

A4275 300 49 65 42 24 56 0.6 TC..16T3.. M4X10

D4275 402 49 65 42 24 56 0.6 CC..1204.. M5X13.1

D5475 300 63 82 54 28 66 1.1 TC..16T3.. M4X10

D5475 402 63 82 54 28 66 1.1 CC..1204.. M5X13.1

A FINISHING BORING HEAD D ROUGHING BORING HEAD

CODE NO. D1 D2 D3 L1 Kg INSERT INSERT SCREW
MIN MAX

A4290 300 49 65 42 24 56 0.58 TC..16T3.. M4X10

A5490 300 63 82 54 28 66 1.05 TC..16T3.. M4X10

A4290 300 49 65 42 24 56 0.6 TC..16T3.. M4X10

D4290 402 49 65 42 24 56 0.6 CC..1204.. M5X13.1

D5490 300 63 82 54 28 66 1.1 TC..16T3.. M4X10

툴홀더 시스템 D5490 402 63 82 54 28 66 1.1 CC..1204.. M5X13.1

874
