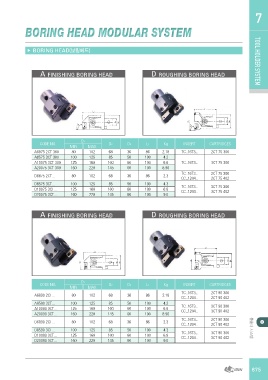

BORING HEAD MODULAR SYSTEM TOOL HOLDER7
▶ BORING HEAD(보링헤드) TOOL HOLDER SYSTEM
A FINISHING BORING HEAD D ROUGHING BORING HEAD
CODE NO. D1 D2 D3 L1 Kg INSERT CARTRIDGES
MIN MAX
A6875 2CT 300 80 102 68 36 86 2.18 TC..16T3.. 2CT 75 300
A8575 3CT 300 100 125 85 50 100 4.2
A10075 3CT 300 125 160 100 60 100 6.6 TC..16T3.. 3CT 75 300
A20075 3CT 300 160 220 145 60 100 8.96
D6875 2CT... 80 102 68 36 86 2.3 TC..16T3.. 2CT 75 300
CC..1204.. 2CT 75 402
D8575 3CT... 100 125 85 50 100 4.3 TC..16T3.. 3CT 75 300
D10075 3CT... 60 100 6.8 CC..1204.. 3CT 75 402
D20075 3CT... 125 160 100 60 100 9.0
160 220 145
A FINISHING BORING HEAD D ROUGHING BORING HEAD
CODE NO. D1 D2 D3 L1 Kg INSERT CARTRIDGES
MIN MAX
A6890 2CT... 80 102 68 36 86 2.18 TC..16T3.. 2CT 90 300
CC..1204.. 2CT 90 402
A8590 3CT... 100 125 85 50 100 4.2 TC..16T3.. 3CT 90 300
A10090 3CT... 60 100 6.6 CC..1204.. 3CT 90 402
A20090 3CT... 125 160 100 60 100 8.96
160 220 145
D6890 2CT... 80 102 68 36 86 2.3 TC..16T3.. 2CT 90 300 툴홀더 시스템
CC..1204.. 2CT 90 402
D8590 3CT... 100 125 85 50 100 4.3 TC..16T3.. 3CT 90 300
D10090 3CT... 60 100 6.8 CC..1204.. 3CT 90 402
D20090 3CT... 125 160 100 60 100 9.0
160 220 145
