P. 877

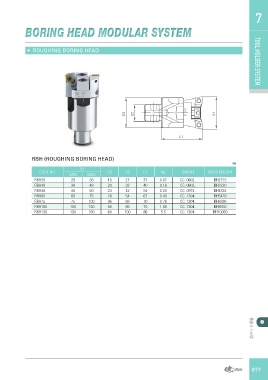

BORING HEAD MODULAR SYSTEM TOOL HOLDER7
▶ ROUGHING BORING HEAD TOOL HOLDER SYSTEM
RBH (ROUGHING BORING HEAD) ㎜
CODE NO. D1 D2 D3 L1 Kg INSERT BASIC HOLDER
MIN MAX
RBH29 29 38 15 27 37 0.07 CC..0602.. BH2715
RBH38 38 48 20 32 40 0.16 CC..0602.. BH3220
RBH48 48 60 24 42 54 0.23 CC..09T3.. BH4224
RBH60 60 75 28 54 67 0.40 CC..1204.. BH5428
RBH75 75 100 36 68 70 0.76 CC..1204.. BH6836
RBH100 100 130 50 85 75 1.80 CC..1204.. BH8550
RBH130 130 180 60 100 86 5.5 CC..1204.. BH10060
툴홀더 시스템
877
