TOOL HTOOOLLDHEOLRDER SYSTEM7

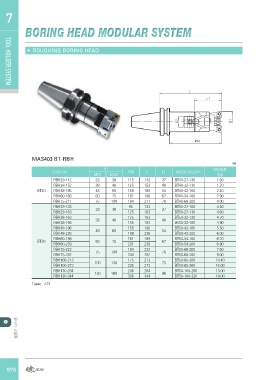

BORING HEAD MODULAR SYSTEM

▶ ROUGHING BORING HEAD

MAS403 BT-RBH ㎜

CODE NO. D1 PM L L1 BASIC HOLDER WEIGHT
MIN MAX (Kg)
RBH29-142 29 38 115 142 37 BT40-27-130
RBH38-152 38 48 125 152 1.60
RBH48-185 48 60 158 185 40 BT40-32-130 1.70
RBH60-188 60 75 161 188 2.40
BT40 RBH75-211 75 100 184 211 54 BT40-42-160 2.90
BT30 RBH29-133 29 38 95 133 4.00
RBH29-163 125 163 67 BT40-54-160 4.50
RBH38-163 38 48 125 163 4.60
RBH38-193 155 193 70 BT40-68-200 4.70
RBH48-196 48 60 158 196 4.90
RBH48-236 198 236 37 BT50-27-100 5.50
RBH60-199 60 75 161 199 BT50-27-130 6.00
RBH60-239 201 239 6.20
RBH75-222 75 100 184 222 40 BT50-32-130 6.90
RBH75-282 244 282 BT50-32-160 7.60
RBH100-213 100 130 175 213 9.00
RBH100-273 235 273 54 BT50-42-160 14.40
RBH130-284 130 180 246 284 BT50-42-200 16.00
RBH130-344 306 344 13.00
67 BT50-54-160 18.00
BT50-54-200

70 BT50-68-200
BT50-68-260

75 BT50-85-200
BT50-85-260

86 BT50-100-260
BT50-100-320

Taper : AT3

툴홀더 시스템

878
