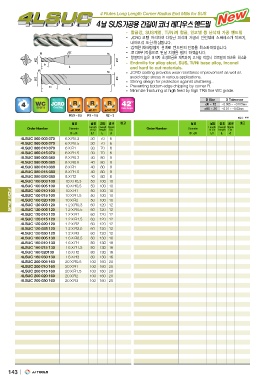

4 Flutes Long Length Corner Radius End Mills for SUS

4 SUS

Endmills for alloy steel, SUS, Ti/Ni base alloy, Inconel
and hard to cut materials.
JCRO coating provides wear resistance improvement as well as
avoid edge stress in various applications.
Strong design for protection against chattering..
Preventing bottom edge chipping by corner R.
Minimize fracturing at high feed by high TRS fine WC grade.

0.005 0.01 0.015 D Size D Tolerance
R2 ~ 3 6 ~ 12 -0.005 ~ -0.015mm
16 ~ 20 -0.01 ~ -0.02mm

R0.3 ~ 0.5 R1 ~ 1.5 mm

Order Number Diameter Length Overall Shank Order Number Diameter Length Overall Shank
of cut Length Dia DR of cut Length Dia
4LSUC 060 003 070 DR L1 L d
4LSUC 060 005 070 L1 L d
4LSUC 060 010 070 6 X R0.3 30 70 6
FOR SUS 4LSUC 060 015 070 6 X R0.5 30 70 6
4LSUC 080 003 080 6 X R1 30 70 6
4LSUC 080 005 080 6 X R1.5 30 70 6
4LSUC 080 010 080 8 X R0.3 40 80 8
4LSUC 080 015 080 8 X R0.5 40 80 8
4LSUC 080 020 080 8 X R1 40 80 8
4LSUC 100 003 100 8 X R1.5 40 80 8
4LSUC 100 005 100 8 X R2 40 80 8
4LSUC 100 010 100 10 X R0.3 50 100 10
4LSUC 100 015 100 10 X R0.5 50 100 10
4LSUC 100 020 100 10 X R1 50 100 10
4LSUC 120 003 120 10 X R1.5 50 100 10
4LSUC 120 005 120 10 X R2 50 100 10
4LSUC 120 010 120 1 2 X R0.3 60 120 12
4LSUC 120 015 120 1 2 X R0.5 60 120 12
4LSUC 120 020 120 1 2 X R1 60 120 12
4LSUC 120 025 120 1 2 X R1.5 60 120 12
4LSUC 120 030 120 1 2 X R2 60 120 12
4LSUC 160 005 130 1 2 X R2.5 60 120 12
4LSUC 160 010 130 1 2 X R3 60 120 12
4LSUC 160 015 130 1 6 X R0.5 80 130 16
4LSUC 160 020130 1 6 X R1 80 130 16
4LSUC 160 030 130 1 6 X R1.5 80 130 16
4LSUC 200 005 160 1 6 X R2 80 130 16
4LSUC 200 010 160 1 6 X R3 80 130 16
4LSUC 200 015 160 20 X R0.5 100 160 20
4LSUC 200 020 160 20 X R1 100 160 20
4LSUC 200 030 160 20 X R1.5 100 160 20
20 X R2 100 160 20
20 X R3 100 160 20
