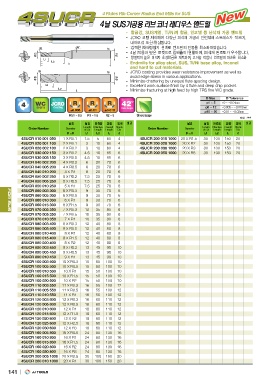

4 Flutes Rib Corner Radius End Mills for SUS

4 SUS

Endmills for alloy steel, SUS, Ti/Ni base alloy, Inconel
and hard to cut materials.
JCRO coating provides wear resistance improvement as well as
avoid edge stress in various applications.
Minimize chattering by unequal flute spacing design.
Excellent work surface finish by 4 flute and deep chip pocket.
Minimize fracturing at high feed by high TRS fine WC grade.

0.005 0.01 0.015 D Size D Tolerance
R2 ~ 5 1~5 +0 ~ -0.01mm
6 ~ 12 -0.005 ~ -0.015mm
-0.01 ~ -0.02mm
16 ~ 20
mm
R0.1 ~ 0.5 R1 ~ 1.5 Shield Edge

Order Number Diameter Length Effective Overall Shank Order Number Diameter Length Effective Overall Shank
of cut Length Length Dia DR of cut Length Length Dia
4SUCR 010 001 050 DR L1 L2 L d 4SUCR 200 015 1000 L1 L2 L d
4SUCR 020 001 100 4SUCR 200 020 1000 20 X R1.5
4SUCR 020 002 100 1 X R0.1 1.5 5 60 4 4SUCR 200 030 1000 20 X R2 30 100 150 20
4SUCR 030 002 150 2 X R0.1 3 10 60 4 4SUCR 200 050 1000 20 X R3 30 100 150 20
4SUCR 030 005 150 2 X R0.2 3 10 60 4 20 X R5 30 100 150 20
4SUCR 040 002 200 3 X R0.2 4.5 15 65 6 30 100 150 20
4SUCR 040 005 200 3 X R0.5 4.5 15 65 6
FOR SUS 4SUCR 040 010 200 4 X R0.2 6 20 70 6
4SUCR 050 002 250 4 X R0.5 6 20 70 6
4SUCR 050 005 250 4 X R1 6 20 70 6
4SUCR 050 010 250 5 X R0.2 7.5 25 70 6
4SUCR 060 003 300 5 X R0.5 7.5 25 70 6
4SUCR 060 005 300 5 X R1 7.5 25 70 6
4SUCR 060 010 300 6 X R0.3 9 30 70 6
4SUCR 060 015 300 6 X R0.5 9 30 70 6
4SUCR 070 003 350 6 X R1 9 30 70 6
4SUCR 070 005 350 6 X R1.5 9 30 70 6
4SUCR 070 010 350 7 X R0.3 10 35 80 8
4SUCR 080 003 400 7 X R0.5 10 35 80 8
4SUCR 080 005 400 7 X R1 10 35 80 8
4SUCR 080 010 400 8 X R0.3 12 40 80 8
4SUCR 080 015 400 8 X R0.5 12 40 80 8
4SUCR 080 020 400 8 X R1 12 40 80 8
4SUCR 090 003 450 8 X R1.5 12 40 80 8
4SUCR 090 005 450 8 X R2 12 40 80 8
4SUCR 090 010 450 9 X R0.3 13 45 90 10
4SUCR 100 003 500 9 X R0.5 13 45 90 10
4SUCR 100 005 500 9 X R1 13 45 90 10
4SUCR 100 010 500 10 X R0.3 15 50 100 10
4SUCR 100 015 500 10 X R0.5 15 50 100 10
4SUCR 100 020 500 10 X R1 15 50 100 10
4SUCR 110 003 550 10 X R1.5 15 50 100 10
4SUCR 110 005 550 10 X R2 15 50 100 10
4SUCR 110 010 550 11 X R0.3 16 55 100 12
4SUCR 120 003 600 11 X R0.5 16 55 100 12
4SUCR 120 005 600 11 X R1 16 55 100 12
4SUCR 120 010 600 12 X R0.3 18 60 110 12
4SUCR 120 015 600 12 X R0.5 18 60 110 12
4SUCR 120 020 600 12 X R1 18 60 110 12
4SUCR 120 025 600 12 X R1.5 18 60 110 12
4SUCR 120 030 600 12 X R2 18 60 110 12
4SUCR 160 005 800 12 X R2.5 18 60 110 12
4SUCR 160 010 800 12 X R3 18 60 110 12
4SUCR 160 015 800 16 X R0.5 24 80 130 16
4SUCR 160 020 800 16 X R1 24 80 130 16
4SUCR 160 030 800 16 X R1.5 24 80 130 16
4SUCR 200 005 1000 16 X R2 24 80 130 16
4SUCR 200 010 1000 16 X R3 24 80 130 16
20 X R0.5 30 100 150 20
20 X R1 30 100 150 20

141 JJ TOOLS
