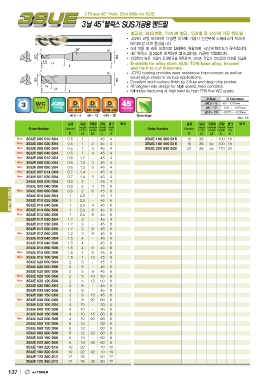

3 Flutes 45 Helix End Mills for SUS

3 45 SUS

Endmills for alloy steel, SUS, Ti/Ni base alloy, Inconel
and hard to cut materials.
JCRO coating provides wear resistance improvement as well as
avoid edge stress in various applications.
Excellent work surface finish by 3 flute and deep chip pocket.
45 degree helix design for high speed, feed condition.
Minimize fracturing at high feed by high TRS fine WC grade.

0 0.01 0.01 0.025 0.015 0.03 D Size D Tolerance
0.5 ~ 5 6 ~ 12 16 ~ 20 0.5 ~ 5 +0 ~ -0.01mm
6 ~ 12 -0.01 ~ -0.025mm
16 ~ 20 -0.015 ~ -0.03mm

Shield Edge mm

Order Number Diameter Length Effective Overall Shank Order Number Diameter Length Effective Overall Shank
of cut Length Length Dia D of cut Length Length Dia
New 3SUE 005 010 S04 D L1 L2 L d 3SUE 160 360 S16 L1 L2 L d
New 3SUE 005 020 S04 3SUE 160 450 S16 16
New 3SUE 005 030 S04 0.5 1 - 45 4 3SUE 200 550 S20 16 36 - 100 16
New 3SUE 005 040 S04 0.5 1 2 45 4 20 36 45 100 16
New 3SUE 006 012 S04 0.5 1 3 45 4 38 55 110 20
New 3SUE 006 030 S04 0.5 1 4 45 4
FOR SUS New 3SUE 006 050 S04 0.6 1.2 - 45 4
New 3SUE 007 014 S04 0.6 1.2 3 45 4
New 3SUE 007 030 S04 0.6 1.2 5 45 4
0.7 1.4 - 45 4
3SUE 008 020 S04 0.7 1.4 3 45 4
3SUE 008 040 S06 0.8 2 - 45 4
New 3SUE 008 060 S06 0.8 2 4 45 6
3SUE 010 025 S04 0.8 2 6 45 6
3SUE 010 025 S06 1 2.5 - 45 4
3SUE 010 040 S06 1 2.5 - 45 6
New 3SUE 010 060 S06 1 2.5 4 45 6
New 3SUE 010 080 S06 1 2.5 6 45 6
3SUE 012 030 S04 1 2.5 8 45 6
3SUE 012 030 S06 1.2 3 - 45 4
3SUE 012 060 S06 1.2 3 - 45 6
New 3SUE 012 080 S06 1.2 3 6 45 6
3SUE 015 040 S04 1.2 3 8 45 6
3SUE 015 040 S06 1.5 4 - 45 4
3SUE 015 060 S06 1.5 4 - 45 6
New 3SUE 015 080 S06 1.5 4 6 45 6
New 3SUE 015 100 S06 1.5 4 8 45 6
3SUE 020 050 S04 1.5 4 10 45 6
3SUE 020 050 S06 2 5 - 45 4
3SUE 020 080 S06 2 5 - 45 6
New 3SUE 020 100 S06 2 5 8 45 6
New 3SUE 020 120 S06 2 5 10 50 6
3SUE 030 080 S04 2 5 12 50 6
3SUE 030 080 S06 3 8 - 45 4
3SUE 030 150 S06 3 8 - 45 6
New 3SUE 030 200 S06 3 8 15 45 6
3SUE 040 100 S04 3 8 20 60 6
3SUE 040 100 S06 4 10 - 50 4
3SUE 040 150 S06 4 10 - 50 6
New 3SUE 040 200 S06 4 10 15 50 6
3SUE 050 120 S06 4 10 20 60 6
3SUE 060 120 S06 5 12 - 50 6
3SUE 060 200 S06 6 12 - 60 6
3SUE 080 190 S08 6 12 20 60 6
3SUE 080 260 S08 8 19 - 60 8
3SUE 100 220 S10 8 19 26 60 8
3SUE 100 320 S10 10 22 - 70 10
3SUE 120 260 S12 10 22 32 70 10
3SUE 120 380 S12 12 26 - 80 12
12 26 38 80 12

137 JJ TOOLS
