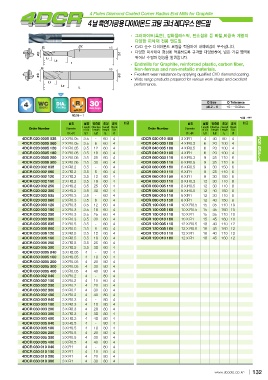

4 Flutes Diamond Coated Corner Radius End Mills for Graphite

4

Endmills for Graphite, reinforced plastic, carbon fiber,
Non-ferrous and non-metallic materials.
Excellent wear resistance by applying qualified CVD diamond coating.
Wide range products prepared for various work shape and excellent
performance.

D Size D Tolerance
0.2 ~ 6 +0 ~ -0.02mm

0.01 mm
R0.05 ~ 1

Order Number Diameter Length Effective Overall Shank Order Number Diameter Length Effective Overall Shank FOR GRAPHITE
of cut Length Length Dia of cut Length Length Dia
4DCR 020 0005 035 DR L1 L2 L d 4DCR 030 010 400 DR L1 L2 L d
4DCR 020 0005 060 4DCR 040 003 100
4DCR 020 0005 120 2 X R0.05 3.5 - 60 4 4DCR 040 005 100 3 X R1 4 40 80 4
4DCR 020 0005 180 2 X R0.05 3.5 6 60 4 4DCR 040 010 100 4 X R0.3 6 20 100 4
4DCR 020 0005 250 2 X R0.05 3.5 12 60 4 4DCR 060 003 110 4 X R0.5 6 20 100 4
4DCR 020 0005 300 2 X R0.05 3.5 18 60 4 4DCR 060 005 110 4 X R1 6 20 100 4
4DCR 020 002 035 2 X R0.05 3.5 25 60 4 4DCR 060 005 150 6 X R0.3 9 25 110 6
4DCR 020 002 060 2 X R0.05 3.5 30 60 4 4DCR 060 010 110 6 X R0.5 9 25 110 6
4DCR 020 002 120 2 X R0.2 3.5 - 60 4 4DCR 060 010 150 6 X R0.5 9 30 150 6
4DCR 020 002 180 2 X R0.2 3.5 6 60 4 4DCR 080 003 110 6 X R1 9 25 110 6
4DCR 020 002 250 2 X R0.2 3.5 12 60 4 4DCR 080 005 110 6 X R1 9 30 150 6
4DCR 020 002 300 2 X R0.2 3.5 18 60 4 4DCR 080 005 150 8 X R0.3 12 30 110 8
4DCR 020 003 035 2 X R0.2 3.5 25 60 4 4DCR 080 010 110 8 X R0.5 12 30 110 8
4DCR 020 003 060 2 X R0.2 3.5 30 60 4 4DCR 080 010 150 8 X R0.5 12 40 150 8
4DCR 020 003 120 2 X R0.3 3.5 - 60 4 4DCR 100 005 110 8 X R1 12 30 110 8
4DCR 020 003 180 2 X R0.3 3.5 6 60 4 4DCR 100 005 160 8 X R1 12 40 150 8
4DCR 020 003 250 2 X R0.3 3.5 12 60 4 4DCR 100 010 110 10 X R0.5 15 35 110 10
4DCR 020 003 300 2 X R0.3 3.5 18 60 4 4DCR 100 010 160 10 X R0.5 15 45 160 10
4DCR 020 005 035 2 X R0.3 3.5 25 60 4 4DCR 120 005 110 10 X R1 15 35 110 10
4DCR 020 005 060 2 X R0.3 3.5 30 60 4 4DCR 120 005 160 10 X R1 15 45 160 10
4DCR 020 005 120 2 X R0.5 3.5 - 60 4 4DCR 120 010 110 12 X R0.5 18 40 110 12
4DCR 020 005 180 2 X R0.5 3.5 6 60 4 4DCR 120 010 160 12 X R0.5 18 45 160 12
4DCR 020 005 250 2 X R0.5 3.5 12 60 4 12 X R1 18 40 110 12
4DCR 020 005 300 2 X R0.5 3.5 18 60 4 12 X R1 18 45 160 12
4DCR 030 0005 040 2 X R0.5 3.5 25 60 4
4DCR 030 0005 100 2 X R0.5 3.5 30 60 4
4DCR 030 0005 200 3 X R0.05 4 - 80 4
4DCR 030 0005 300 3 X R0.05 4 10 80 4
4DCR 030 0005 400 3 X R0.05 4 20 80 4
4DCR 030 002 040 3 X R0.05 4 30 80 4
4DCR 030 002 100 3 X R0.05 4 40 80 4
4DCR 030 002 200 3 X R0.2 4 - 80 4
4DCR 030 002 300 3 X R0.2 4 10 80 4
4DCR 030 002 400 3 X R0.2 4 20 80 4
4DCR 030 003 040 3 X R0.2 4 30 80 4
4DCR 030 003 100 3 X R0.2 4 40 80 4
4DCR 030 003 200 3 X R0.3 4 - 80 4
4DCR 030 003 300 3 X R0.3 4 10 80 4
4DCR 030 003 400 3 X R0.3 4 20 80 4
4DCR 030 005 040 3 X R0.3 4 30 80 4
4DCR 030 005 100 3 X R0.3 4 40 80 4
4DCR 030 005 200 3 X R0.5 4 - 80 4
4DCR 030 005 300 3 X R0.5 4 10 80 4
4DCR 030 005 400 3 X R0.5 4 20 80 4
4DCR 030 010 040 3 X R0.5 4 30 80 4
4DCR 030 010 100 3 X R0.5 4 40 80 4
4DCR 030 010 200 3 X R1 4 - 80 4
4DCR 030 010 300 3 X R1 4 10 80 4
3 X R1 4 20 80 4
3 X R1 4 30 80 4
