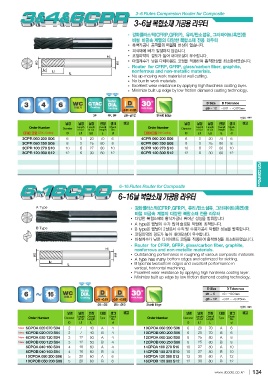

3~6 Flutes Compresion Router for Composite

3~6

Router for CFRP, GFRP, glass/carbon fiber, graphite,
nonferrous and non-metallic materials.
No up-moving work material at wall cutting.
No burr in work materials.
Excellent wear resistance by applying high hardness coating layer.
Minimize built up edge by low friction diamond coating technology.

0.01 0.025 D Size D Tolerance
6 ~ 12 -0.01 ~ -0.025mm
3F 4F, 6F 6~ 12 Shield Edge
mm

Order Number Diameter Length Length Overall Shank Order Number Diameter Length Length Overall Shank
D of cut of cut Length Dia D of cut of cut Length Dia
GTAC Coating L1 L2 DIA Coating L1 L2
6 Ld 6 Ld
3CPR 060 200 S06 8 5 20 4CPR 060 200 S06 8 5 20
3CPR 080 250 S08 10 5 25 70 6 6CPR 080 250 S08 10 5 25 70 6
3CPR 100 270 S10 12 6 27 80 8 6CPR 100 270 S10 12 6 27 80 8
3CPR 120 300 S12 6 30 80 10 6CPR 120 300 S12 6 30 80 10
80 12 80 12

6~16 Flutes Router for Composite FOR COMPOSITE

6~16

A Type

B Type

Router for CFRP, GFRP, glass/carbon fiber, graphite,
nonferrous and non-metallic materials.
Outstanding performance in roughing of various composite materials.

bottom edges and optimized for slotting.
B type has two bottom edges and excellent performance in
vertical, horizontal machining.
Excellent wear resistance by applying high hardness coating layer.
Minimize built up edge by low friction diamond coating technology.

0 0.01 0.01 0.025 D Size D Tolerance
4~5 +0 ~ -0.01mm
6 ~ 12 -0.01 ~ -0.025mm

4~ 5 6~ 12 Shield Edge mm

Order Number Diameter Length Overall Type Shank Order Number Diameter Length Overall Type Shank
of cut Length Dia of cut Length Dia

D L1 L d D L1 L d

New 6CPOA 020 070 S04 2 7 40 A4 10CPOA 060 200 S06 6 20 70 A6
New 6CPOB 020 070 S04 2 7 40 B4 10CPOB 060 200 S06 6 20 70 B6
New 6CPOA 030 120 S04 3 12 50 A4 12CPOA 080 250 S08 8 25 80 A8
New 6CPOB 030 120 S04 3 12 50 B4 12CPOB 080 250 S08 8 25 80 B8
4 16 60 A4 14CPOA 100 270 S10 10 27 80 A 10
8CPOA 040 160 S04 4 16 60 B4 14CPOB 100 270 S10 10 27 80 B 10
8CPOB 040 160 S04 5 20 60 A6 16CPOA 120 300 S12 12 30 80 A 12
10CPOA 050 200 S06 5 20 60 B6 16CPOB 120 300 S12 12 30 80 B 12
10CPOB 050 200 S06

www.jjtools.co.kr 134
