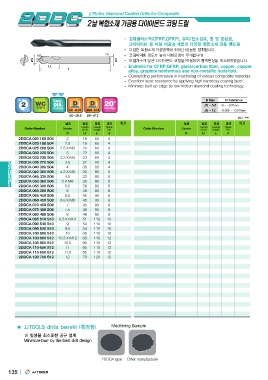

2 Flutes Diamond Coated Drills for Composite

2

Endmills for CFRP,GFRP, glass/carbon fiber, copper, copper
alloy, graphite nonferrous and non-metallic materials.
Outstanding performance in machining of various composite materials.

Excellent wear resistance by applying high hardness coating layer.

Minimize built up edge by low friction diamond coating technology.

0 0.01 0.005 0.015 D Size D Tolerance
2~ 5.5 6~ 12 2 ~ 5.5 +0 ~ -0.01mm
6 ~ 12 -0.005 ~ -0.015mm

mm

Order Number Diameter Length Overall Shank Order Number Diameter Length Overall Shank
of cut Length Dia D of cut Length Dia
2DDCA 020 160 S04 D L1 d
2DDCA 023 180 S04 L L1 L d
2DDCA 025 200 S04 2 16 4
FOR COMPOSITE 2DDCA 030 220 S04 2.3 18 60 4
2DDCA 033 230 S04 2.5 X M3 20 60 4
2DDCA 035 270 S04 3 22 60 4
2DDCA 040 300 S04 3.3 X M4 23 60 4
2DDCA 042 300 S06 3.5 27 60 4
2DDCA 045 330 S06 4 30 60 4
2DDCA 050 360 S06 4.2 X M5 30 60 6
2DDCA 055 380 S06 4.5 33 80 6
2DDCA 060 380 S06 5 X M6 36 80 6
2DDCA 065 450 S08 5.5 38 80 6
2DDCA 068 450 S08 6 38 80 6
2DDCA 070 450 S08 6.5 45 80 8
2DDCA 075 480 S08 6.8 X M8 45 90 8
2DDCA 080 480 S08 7 45 90 8
2DDCA 085 510 S10 7.5 48 90 8
2DDCA 090 540 S10 8 48 90 8
2DDCA 095 540 S10 8.5 X M10 51 90 10
2DDCA 100 600 S10 9 54 110 10
2DDCA 103 600 S12 9.5 54 110 10
2DDCA 105 600 S12 10 60 110 10
2DDCA 110 650 S12 10.3 X M12 60 110 12
2DDCA 115 650 S12 10.5 60 110 12
2DDCA 120 700 S12 11 65 110 12
11.5 65 110 12
12 70 110 12
120

Machining Sample

Minimize burr by the best drill design

2DDCA type Other manufacturer
