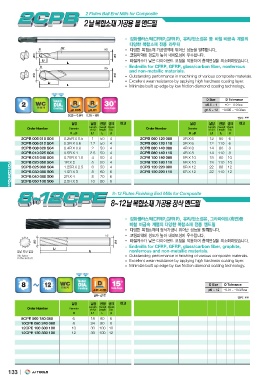

2 Flutes Ball End Mills for Composite

2

Endmills for CFRP, GFRP, glass/carbon fiber, nonferrous
and non-metallic materials.
Outstanding performance in machining of various composite materials.

Excellent wear resistance by applying high hardness coating layer.

Minimize built up edge by low friction diamond coating technology.

0.005 0.01 D Size D Tolerance
0.5 ~ 1 +0 ~ -0.01mm
1.5 ~ 12 -0.005 ~ -0.02mm

0.25 ~ 0.5R 0.75 ~ 6R mm

Order Number Diameter Length Overall Shank Order Number Diameter Length Overall Shank
of cut Length Dia of cut Length Dia
2CPB 005 010 S04 RD 2CPB 060 120 080 RD L1 L d
2CPB 006 012 S04 L1 L d 2CPB 060 120 110
2CPB 008 020 S04 0.25R X 0.5 2CPB 080 140 080 3R X 6 12 80 6
FOR COMPOSITE 2CPB 010 025 S04 0.3R X 0.6 1 50 4 2CPB 080 140 110 3R X 6 12 110 6
2CPB 015 040 S04 0.4R X 0.8 1.2 50 4 2CPB 100 180 080 4R X 8 14 80 8
2CPB 020 050 S04 0.5R X 1 2 50 4 2CPB 100 180 110 4R X 8 14 110 8
2CPB 025 060 S04 0.75R X 1.5 2.5 50 4 2CPB 120 220 080 5R X 10 18 80 10
2CPB 030 080 S06 1R X 2 4 50 4 2CPB 120 220 110 5R X 10 18 110 10
2CPB 040 080 S06 1.25R X 2.5 5 50 4 6R X 12 22 80 12
2CPB 050 100 S06 1.5R X 3 6 50 4 6R X 12 22 110 12
2R X 4 8 60 6
2.5R X 5 8 70 6
10 80 6

8~12 Flutes Finishing End Mills for Composite

8~12

Endmills for CFRP, GFRP, glass/carbon fiber, graphite,
nonferrous and non-metallic materials.
Outstanding performance in finishing of various composite materials.

Excellent wear resistance by applying high hardness coating layer.

Minimize built up edge by low friction diamond coating technology.

0.01 0.025 D Size D Tolerance
6~ 12 6 ~ 12 -0.01 ~ -0.025mm

Length Overall Shank mm
of cut Length Dia
Order Number Diameter L1 L d
D
8CPE 060 180 080 18 80 6
10CPE 080 240 080 6 24 80 8
12CPE 100 300 100 8 30 100 10
12CPE 120 360 100 10 36 100 12
12

133 JJ TOOLS
