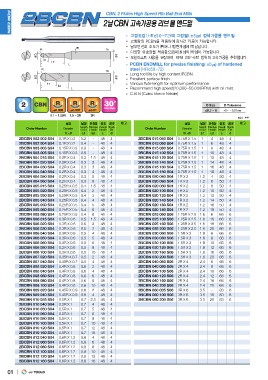

FOR CBN CBN, 2 Flutes High Speed Rib Ball End Mills

2 CBN

PCBN ENDMILL for precise finishing( 5 ) of hardened
steel (HRc50~72)
Long tool life by high content PCBN.
Excellent surface finish.
Various flute length for optimum performance.
Recommend high speed(20,000~50,000RPM) with oil-mist.

C.B.N (Cubic Boron Nitride)

0.005 0.007 0.01 D Size D Tolerance
3R 0.2 ~ 6 +0 ~ -0.01mm

0.1 ~ 1.25R 1.5 ~ 2R mm

Order Number Diameter Length Effective Overall Shank Order Number Diameter Length Effective Overall Shank
RD of cut Length Length Dia RD of cut Length Length Dia
2BCBN 002 002 S04 2BCBN 015 040 S04
2BCBN 002 004 S04 L1 L2 L d 2BCBN 015 060 S04 L1 L2 L d
2BCBN 003 003 S04 2BCBN 015 080 S04
2BCBN 003 005 S04 0.1R X 0.2 0.2 - 48 4 2BCBN 015 100 S04 0.75R X 1.5 1 4 48 4
2BCBN 004 015 S04 0.1R X 0.2 0.4 - 48 4 2BCBN 015 120 S04
2BCBN 004 020 S04 0.15R X 0.3 0.3 - 48 4 2BCBN 015 140 S04 0.75R X 1.5 1 6 48 4
2BCBN 004 030 S04 0.15R X 0.3 0.5 - 48 4 2BCBN 015 160 S04
2BCBN 004 040 S04 0.2R X 0.4 0.3 1.5 48 4 2BCBN 015 180 S04 0.75R X 1.5 1 8 48 4
2BCBN 004 050 S04 0.2R X 0.4 0.3 2 48 4 2BCBN 020 040 S04
2BCBN 004 060 S04 0.2R X 0.4 0.3 3 48 4 2BCBN 020 060 S04 0.75R X 1.5 1 10 48 4
2BCBN 005 015 S04 0.2R X 0.4 0.3 4 48 4 2BCBN 020 080 S04
2BCBN 005 020 S04 0.2R X 0.4 0.3 5 48 4 2BCBN 020 100 S04 0.75R X 1.5 1 12 48 4
2BCBN 005 030 S04 0.2R X 0.4 0.3 6 48 4 2BCBN 020 120 S04
2BCBN 005 040 S04 0.25R X 0.5 0.4 1.5 48 4 2BCBN 020 140 S04 0.75R X 1.5 1 14 48 4
2BCBN 005 050 S04 0.25R X 0.5 0.4 2 48 4 2BCBN 020 160 S04
2BCBN 005 060 S04 0.25R X 0.5 0.4 3 48 4 2BCBN 020 180 S04 0.75R X 1.5 1 16 48 4
2BCBN 005 080 S04 0.25R X 0.5 0.4 4 48 4 2BCBN 025 060 S06
2BCBN 006 015 S04 0.25R X 0.5 0.4 5 48 4 2BCBN 025 100 S06 0.75R X 1.5 1 18 48 4
2BCBN 006 020 S04 0.25R X 0.5 0.4 6 48 4 2BCBN 025 160 S06
2BCBN 006 030 S04 0.25R X 0.5 0.4 8 48 4 2BCBN 025 200 S06 1R X 2 1.2 4 50 4
2BCBN 006 040 S04 0.3R X 0.6 0.5 1.5 48 4 2BCBN 030 060 S06
2BCBN 006 050 S04 0.3R X 0.6 0.5 2 48 4 2BCBN 030 080 S06 1R X 2 1.2 6 50 4
2BCBN 006 060 S04 0.3R X 0.6 0.5 3 48 4 2BCBN 030 100 S06
2BCBN 006 080 S04 0.3R X 0.6 0.5 4 48 4 2BCBN 030 120 S06 1R X 2 1.2 8 50 4
2BCBN 006 100 S04 0.3R X 0.6 0.5 5 48 4 2BCBN 030 160 S06
2BCBN 007 020 S04 0.3R X 0.6 0.5 6 48 4 2BCBN 030 200 S06 1R X 2 1.2 10 50 4
2BCBN 007 040 S04 0.3R X 0.6 0.5 8 48 4 2BCBN 040 060 S06
2BCBN 008 020 S04 0.3R X 0.6 0.5 10 48 4 2BCBN 040 080 S06 1R X 2 1.2 12 50 4
2BCBN 008 040 S04 0.35R X 0.7 0.5 2 48 4 2BCBN 040 100 S06
2BCBN 008 060 S04 0.35R X 0.7 0.5 4 48 4 2BCBN 040 120 S06 1R X 2 1.2 14 50 4
2BCBN 008 080 S04 0.4R X 0.8 0.6 2 48 4 2BCBN 040 160 S06
2BCBN 008 100 S04 0.4R X 0.8 0.6 4 48 4 2BCBN 040 200 S06 1R X 2 1.2 16 50 4
2BCBN 009 020 S04 0.4R X 0.8 0.6 6 48 4 2BCBN 060 035 S06
2BCBN 009 040 S04 0.4R X 0.8 0.6 8 48 4 2BCBN 060 100 S06 1R X 2 1.2 18 50 4
2BCBN 010 025 S04 0.4R X 0.8 0.6 10 48 4 2BCBN 060 200 S06
2BCBN 010 040 S04 0.45R X 0.9 0.6 2 48 4 1.25R X 2.5 1.6 6 66 6
2BCBN 010 050 S04 0.45R X 0.9 0.6 4 48 4
2BCBN 010 060 S04 0.5R X 1 0.7 2.5 48 4 1.25R X 2.5 1.6 10 66 6
2BCBN 010 080 S04 0.5R X 1 0.7 4 48 4
2BCBN 010 100 S04 0.5R X 1 0.7 5 48 4 1.25R X 2.5 1.6 16 66 6
2BCBN 010 120 S04 0.5R X 1 0.7 6 48 4
2BCBN 010 160 S04 0.5R X 1 0.7 8 48 4 1.25R X 2.5 1.6 20 66 6
2BCBN 012 040 S04 0.5R X 1 0.7 10 48 4
2BCBN 012 060 S04 0.5R X 1 0.7 12 48 4 1.5R X 3 1.8 6 66 6
2BCBN 012 080 S04 0.5R X 1 0.7 16 48 4
2BCBN 012 100 S04 0.6R X 1.2 0.8 4 48 4 1.5R X 3 1.8 8 66 6
2BCBN 012 120 S04 0.6R X 1.2 0.8 6 48 4
2BCBN 012 160 S04 0.6R X 1.2 0.8 8 48 4 1.5R X 3 1.8 10 66 6
0.6R X 1.2 0.8 10 48 4
0.6R X 1.2 0.8 12 48 4 1.5R X 3 1.8 12 66 6
0.6R X 1.2 0.8 16 48 4
1.5R X 3 1.8 16 66 6

1.5R X 3 1.8 20 66 6

2R X 4 2.4 6 66 6

2R X 4 2.4 8 66 6

2R X 4 2.4 10 66 6

2R X 4 2.4 12 66 6

2R X 4 2.4 16 66 6

2R X 4 2.4 20 66 6

3R X 6 3.5 - 83 6

3R X 6 3.5 10 83 6

3R X 6 3.5 20 83 6

01 JJ TOOLS
