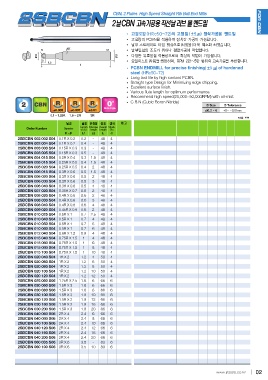

CBN, 2 Flutes High Speed Straight Rib Ball End Mills FOR CBN

2 CBN

PCBN ENDMILL for precise finishing( 5 ) of hardened
steel (HRc50~72)

Long tool life by high content PCBN.

Straight type Design for Minimizing edge chipping.

Excellent surface finish.

Various flute length for optimum performance.

Recommend high speed(20,000~50,000RPM) with oil-mist.

C.B.N (Cubic Boron Nitride) D Size D Tolerance

0.005 0.007 0.01 0.2 ~ 6 +0 ~ -0.01mm
3R
0.1 ~ 1.25R 1.5 ~ 2R mm

Order Number Diameter Length Effective Overall Shank
RD of cut Length Length Dia

L1 L2 L d

2SBCBN 002 002 S04 0.1R X 0.2 0.2 - 48 4

2SBCBN 002 004 S04 0.1R X 0.2 0.4 - 48 4

2SBCBN 003 003 S04 0.15R X 0.3 0.3 - 48 4

2SBCBN 003 005 S04 0.15R X 0.3 0.5 - 48 4

2SBCBN 004 015 S04 0.2R X 0.4 0.3 1.5 48 4

2SBCBN 005 015 S04 0.25R X 0.5 0.4 1.5 48 4

2SBCBN 005 020 S04 0.25R X 0.5 0.4 2 48 4

2SBCBN 006 015 S04 0.3R X 0.6 0.5 1.5 48 4

2SBCBN 006 020 S04 0.3R X 0.6 0.5 2 48 4

2SBCBN 006 030 S04 0.3R X 0.6 0.5 3 48 4

2SBCBN 006 040 S04 0.3R X 0.6 0.5 4 48 4

2SBCBN 007 020 S04 0.35R X 0.7 0.5 2 48 4

2SBCBN 008 020 S04 0.4R X 0.8 0.6 2 48 4

2SBCBN 008 030 S04 0.4R X 0.8 0.6 3 48 4

2SBCBN 008 040 S04 0.4R X 0.8 0.6 4 48 4

2SBCBN 009 020 S04 0.45R X 0.9 0.6 2 48 4

2SBCBN 010 025 S04 0.5R X 1 0.7 2.5 48 4

2SBCBN 010 040 S04 0.5R X 1 0.7 4 48 4

2SBCBN 010 050 S04 0.5R X 1 0.7 5 48 4

2SBCBN 010 060 S04 0.5R X 1 0.7 6 48 4

2SBCBN 012 040 S04 0.6R X 1.2 0.8 4 48 4

2SBCBN 015 040 S04 0.75R X 1.5 1 4 48 4

2SBCBN 015 060 S04 0.75R X 1.5 1 6 48 4

2SBCBN 015 080 S04 0.75R X 1.5 1 8 48 4

2SBCBN 015 100 S04 0.75R X 1.5 1 10 48 4

2SBCBN 020 040 S04 1R X 2 1.2 4 50 4

2SBCBN 020 060 S04 1R X 2 1.2 6 50 4

2SBCBN 020 080 S04 1R X 2 1.2 8 50 4

2SBCBN 020 100 S04 1R X 2 1.2 10 50 4

2SBCBN 020 120 S04 1R X 2 1.2 12 50 4

2SBCBN 025 060 S06 1.25R X 2.5 1.6 6 66 6

2SBCBN 030 060 S06 1.5R X 3 1.8 6 66 6

2SBCBN 030 080 S06 1.5R X 3 1.8 8 66 6

2SBCBN 030 100 S06 1.5R X 3 1.8 10 66 6

2SBCBN 030 120 S06 1.5R X 3 1.8 12 66 6

2SBCBN 030 160 S06 1.5R X 3 1.8 16 66 6

2SBCBN 030 200 S06 1.5R X 3 1.8 20 66 6

2SBCBN 040 060 S06 2R X 4 2.4 6 66 6

2SBCBN 040 080 S06 2R X 4 2.4 8 66 6

2SBCBN 040 100 S06 2R X 4 2.4 10 66 6

2SBCBN 040 120 S06 2R X 4 2.4 12 66 6

2SBCBN 040 160 S06 2R X 4 2.4 16 66 6

2SBCBN 040 200 S06 2R X 4 2.4 20 66 6

2SBCBN 060 035 S06 3R X 6 3.5 - 83 6

2SBCBN 060 100 S06 3R X 6 3.5 10 83 6
