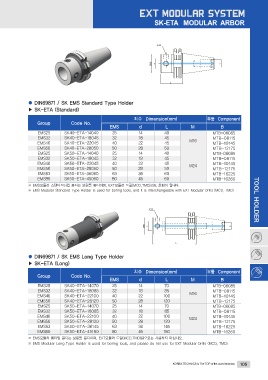

SK-ETA MODULAR ARBOR

● DIN69871 / SK EMS Standard Type Holder
▶ SK-ETA (Standard)

Group Code No. EMS 치수 Dimension(mm) 부품 Component
dL MB

EMS25 SK40-ETA-14040 25 14 40 MTB-06085
EMS32 SK40-ETA-18045 32 18 45
EMS40 SK40-ETA-22045 40 22 45 M16 MTB-08115
MTB-10145
EMS50 SK40-ETA-28050 50 28 50 MTB-12175
EMS25 SK50-ETA-14040 25 14 40
EMS32 SK50-ETA-18045 32 18 45 MTB-06085
MTB-08115
EMS40 SK50-ETA-22045 40 22 45 MTB-10145
EMS50 SK50-ETA-28050 50 28 50 M24 MTB-12175

EMS63 SK50-ETA-36060 63 36 60 MTB-16225
EMS80 SK50-ETA-45060 80 45 60
MTB-16260 TOOL HOLDER

※ EMS모듈러 스탠다드타입 홀더는 보링툴 홀더이며, EXT모듈러 드릴(MCD,TMD)과도 호환이 됩니다.
※ EMS Modular Standard Type Holder is used for boring tools, and it is interchangeable with EXT Modular Drills (MCD, TMD).

● DIN69871 / SK EMS Long Type Holder
▶ SK-ETA (Long)

Group Code No. EMS 치수 Dimension(mm) 부품 Component
dL MB

EMS25 SK40-ETA-14070 25 14 70 MTB-06085
EMS32 SK40-ETA-18085 32 18 85
EMS40 SK40-ETA-22100 40 22 100 M16 MTB-08115
EMS50 SK40-ETA-28120 50 MTB-10145
EMS25 SK50-ETA-14070 25 28 120 MTB-12175
EMS32 SK50-ETA-18085 32 14 70
EMS40 SK50-ETA-22100 40 18 85 MTB-06085
EMS50 SK50-ETA-28120 50 MTB-08115
EMS63 SK50-ETA-36145 63 22 100 MTB-10145
EMS80 SK50-ETA-45180 80 28 120 M24 MTB-12175

36 145 MTB-16225
45 180
MTB-16260

※ EMS모듈러 롱타입 홀더는 보링툴 홀더이며, EXT모듈러 드릴(MCD,TMD)용으로는 사용하지 마십시오..

※ EMS Modular Long Type Holder is used for boring tools, and please do not use for EXT Modular Drills (MCD, TMD).

KOREA TECHNICS is The TOP of the world technics 105
