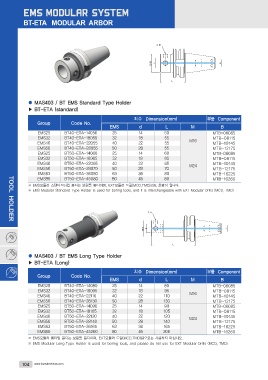

BT-ETA MODULAR ARBOR

● MAS403 / BT EMS Standard Type Holder
▶ BT-ETA (standard)

Group Code No. EMS 치수 Dimension(mm) 부품 Component
dL MB

EMS25 BT40-ETA-14050 25 14 50 MTB-06085
EMS32 BT40-ETA-18055 32 18 55
EMS40 BT40-ETA-22055 40 22 55 M16 MTB-08115
MTB-10145
EMS50 BT40-ETA-28055 50 28 55 MTB-12175
EMS25 BT50-ETA-14060 25 14 60
EMS32 BT50-ETA-18065 32 18 65 MTB-06085
MTB-08115
EMS40 BT50-ETA-22065 40 22 65 MTB-10145
EMS50 BT50-ETA-28070 50 28 70 M24 MTB-12175

TOOL HOLDER EMS63 BT50-ETA-36080 63 36 80 MTB-16225
EMS80 BT50-ETA-45080 80 45 80
MTB-16260

※ EMS모듈러 스탠다드타입 홀더는 보링툴 홀더이며, EXT모듈러 드릴(MCD,TMD)과도 호환이 됩니다.
※ EMS Modular Standard Type Holder is used for boring tools, and it is interchangeable with EXT Modular Drills (MCD, TMD).

● MAS403 / BT EMS Long Type Holder
▶ BT-ETA (Long)

Group Code No. EMS 치수 Dimension(mm) 부품 Component
dL MB

EMS25 BT40-ETA-14080 25 14 80 MTB-06085
EMS32 BT40-ETA-18095 32 18 95
EMS40 BT40-ETA-22110 40 22 110 M16 MTB-08115
EMS50 BT40-ETA-28130 50 MTB-10145
EMS25 BT50-ETA-14090 25 28 130 MTB-12175
EMS32 BT50-ETA-18105 32 14 90
EMS40 BT50-ETA-22120 40 18 105 MTB-06085
EMS50 BT50-ETA-28140 50 MTB-08115
EMS63 BT50-ETA-36165 63 22 120 MTB-10145
EMS80 BT50-ETA-45200 80 28 140 M24 MTB-12175

36 165 MTB-16225
45 200
MTB-16260

※ EMS모듈러 롱타입 홀더는 보링툴 홀더이며, EXT모듈러 드릴(MCD,TMD)용으로는 사용하지 마십시오..

※ EMS Modular Long Type Holder is used for boring tools, and please do not use for EXT Modular Drills (MCD, TMD).
