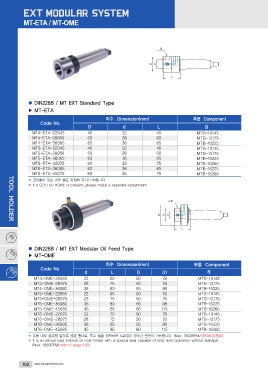

MT-ETA / MT-OME

● DIN228B / MT EXT Standard Type
▶ MT-ETA

Code No. 치수 Dimension(mm) L 부품 Component
Dd 45
60 B
TOOL HOLDER MT4-ETA-22045 40 22 65 MTB-10145
MT4-ETA-28060 50 28 45 MTB-12175
MT4-ETA-36065 63 36 60 MTB-16225
MT5-ETA-22045 40 22 65 MTB-10145
MT5-ETA-28060 50 28 75 MTB-12175
MT5-ETA-36065 63 36 65 MTB-16225
MT5-ETA-45075 80 45 75 MTB-16260
MT6-ETA-36065 63 36 MTB-16225
MT6-ETA-45075 80 45 MTB-16260

※ 코터홈이 있는 경우 별도 지정해 주시기 바랍니다.
※ If a COTTER HOME is present, please make a separate assignment.

● DIN228B / MT EXT Modular Oil Feed Type
▶ MT-OME

Code No. 치수 Dimension(mm) 부품 Component
d L D D1 B

MT4-OME-22065 22 65 50 78 MTB-10145
MT4-OME-28075 28 75 50 78 MTB-12175
MT4-OME-36080 36 80 65 98 MTB-16225
MT5-OME-22065 22 65 50 78 MTB-10145
MT5-OME-28075 28 75 50 78 MTB-12175
MT5-OME-36080 36 80 65 98 MTB-16225
MT5-OME-45085 45 85 80 115 MTB-16260
MT6-OME-22070 22 70 50 78 MTB-10145
MT6-OME-28075 28 75 50 78 MTB-12175
MT6-OME-36085 36 85 65 98 MTB-16225
MT6-OME-45085 45 85 80 115 MTB-16260

※ 수동 내부 급유형 절삭유 공급 홀더로, 특수 씰을 장착하여 누유없이 장시간 운전이 가능합니다. (Max. 1800RPM/138페이지참조)
※ It is a manual type internal oil hole holder with a special seal capable of long term operation without leakage.

(Max. 1800RPM/refer to page 138)
