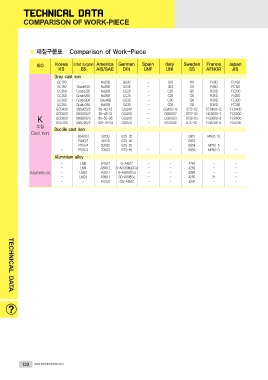

COMPARISON OF WORK-PIECE

● 재질구분표 Comparison of Work-Piece

ISO Korea United Kongdom America German Spain Italy Sweden France Japan
KS BS AIS/SAE DIN UNF UNI SS AFNOR JIS
K
Gray cast iron -
주철 -
Cast iron GC100 - No20B GG10 - G10 110 Ft10D FC100
GC150 Grade150 No25B GG15 - G14 115 Ft15D FC150
Aluminium GC200 Grade220 No30B GG20 - G20 120 Ft20D FC200
GC250 Grade260 No35B GG25 - G25 125 Ft25D Fc250
GC300 Grade300 GNo45B GG30 - G30 130 Ft30D FC300
GC350 Grade350 No50B GG35 - G35 135 Ft35D FC350
GCD400 SNG420/2 60-40-18 GGG40 - GS400-12 0717-02 FCS400-12 FCD400
GCD500 SNG500/7 65-45-12 GGG50 - GS500/7 0727-02 HGS500-7 FCD500
GCD600 SNG600/3 80-55-06 GGG60 - GS600/3 0732-03 FGS600-3 FCD600
GCD700 SNG700/2 100-70-03 GGG70 - GS700/2 0737-01 FGS700-2 FCD700
-
Ductile cast iron -
-
- B340/12 32510 GTS-35 - - 0815 MN35-10 -
- P440/7 40010 GTS-45 - - 0852 - -
- P510/4 50005 GTS-55 - - 0854 MP50-5 -
- P570/3 70003 GTS-65 - - 0858 MP60-3 -

Aluminium alloy

- LM6 A413.2 G-AISi12 - 4261 - -
- LM9 A360.2 G-AISi10Mg(Cu) - 4253 - -
- LM20 A413.1 G-AiSi12(Cu) - 4260 - -
- LM24 A380.1 GD-AISi8Cu - 4250 3- -
- - A413.0 GD-AISi12 - 4247 - -
