P. 139

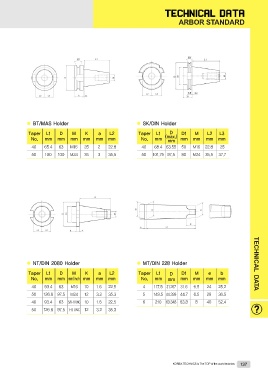

ARBOR STANDARD
● BT/MAS Holder ● SK/DIN Holder
Taper L1 D M K a L2 Taper L1 D D1 M L2 L3
No. mm mm mm mm mm mm No. mm (max.) mm mm mm mm
40 65.4 63 M16 25 2 22.8
50 100 100 M24 35 3 35.5 mm
40 68.4 63.55 50 M16 22.8 25
50 101.75 97.5 80 M24 35.5 37.7
● NT/DIN 2080 Holder ● MT/DIN 228 Holder TECHNICAL DATA
Taper L1 D M K a L2 Taper L1 D D1 M e b
No. mm mm mm/inch mm mm mm No. mm mm mm mm mm mm
40 93.4 63 M16 10 1.6 22.5 4 117.5 31.267 31.6 6.5 24 25.2
50 126.8 97.5 M24 12 3.2 35.3 5 149.5 44.399 44.7 6.5 29 36.5
40 93.4 63 5/8-11 UNC 10 1.6 22.5 6 210 63.348 63.8 8 40 52.4
50 126.8 97.5 1-8 UNC 12 3.2 35.3
KOREA TECHNICS is The TOP of the world technics 137
