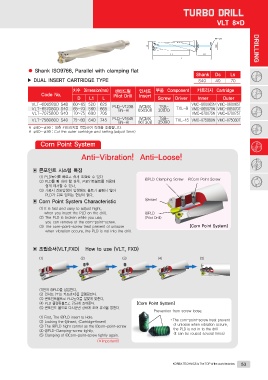

VLT 8×D

D DRILLING
DS

L1 LS
L

● Shank ISO9766, Parallel with clamping flat Shank Ds Ls
▶ DUAL INSERT CARTRIDGE TYPE S40 40 70

Code No. 치수 Dimension(mm) 센터드릴 인서트 부품 Component 카트리지 Cartridge
D L1 L Pilot Drill Insert Screw Driver
Inner Outer

VLT-606580D S40 60~65 520 625 PLD-V1238 0W5C03M0X8 TSB- VMC-060065N VMC-060065T
VLT-657080D S40 65~70 560 665 TiN-H 30070 TXL-8 VMC-065070N VMC-065070T
VLT-707580D S40 70~75 600 705
3T5S0B9-0 VMC-070075N VMC-070075T

VLT-758080D S40 75~80 640 745 PLD-V1645 WCMX TXL-15 VMC-075080N VMC-075080T
TiN-H 06T308

※ ø60~ø80 : 외측 카트리지를 컷팅하여 직경을 조절합니다.
※ ø60~ø80 : Cut the outer cartridge and setting.(adjust 5mm)

Corn Point System

Anti-Vibration! Anti-Loose!

▣ 콘포인트 시스템 특징 ⓓPLD Clamping Screw ⓒCorn Point Screw

(1) PLD높이를 빠르고 쉽게 조절할 수 있다 ⓑInsert
(2) PLD를 빼 내야 할 경우, 콘포인트볼트를 이용해 ⓐPLD
(Pilot Drill)
쉽게 제거할 수 있다.
(3) 가공시 진동발생이 발생해도 볼트가 풀림지 않아 [Corn Point System]

PLD가 뒤로 밀리는 현상이 없다.

▣ Corn Point System Characteristic

(1) It is fast and easy to adjust hight,
when you insert the PLD on the drill.

(2) The PLD is broken while you use,
you can remove of the corn-point-screw.

(3) The corn-point-screw treat prevent of unloose
when vibration occure, the PLD is not into the drill.

▣ 조립순서(VLT,FXD) How to use (VLT, FXD) (4) (5)

(1) (2) (3)

(1)먼저 ⓐPLD를 삽입한다. [Corn Point System]
(2) 인서트 (또는 카트리지)를 클램핑한다. Prevention from screw loose.
(3) 콘포인트볼트로 PLD높이를 알맞게 맞춘다.
(4) PLD 클램핑볼트로 강하게 조여준다. •The corn-point-screw treat prevent
(5) 콘포인트 볼트로 다시한번 강하게 조여 유격을 없앤다. of unloose when vibration occure,
the PLD is not in to the drill
(1) First, The ⓐPLD insert to Hole. (It can be reused several times)
(2) Locking the ⓑInsert. (Cartridge+Insert)
(3) The ⓐPLD hight control as the ⓒcorn-point-screw
(4) ⓓPLD-Clamping-screw tightly.
(5) Clamping of ⓒCorn-point-screw tightly again.

(※Important!)

KOREA TECHNICS is The TOP of the world technics 53
