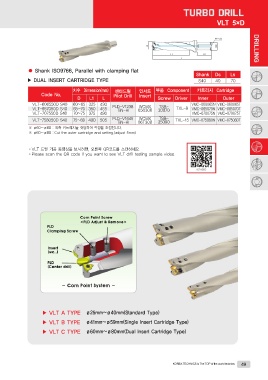

VLT 5×D

                                                              D                                                                                                            DRILLING
                                                                                                                                                                DS

                                                                                     L1                LS
                                                                                                    L

● Shank ISO9766, Parallel with clamping flat                                                           Shank Ds                                                     Ls
▶ DUAL INSERT CARTRIDGE TYPE                                                                            S40 40                                                      70

Code No.         치수 Dimension(mm) 센터드릴 인서트 부품 Component                                                카트리지 Cartridge
                   D L1 L Pilot Drill Insert Screw Driver
                                                                                                       Inner                                                        Outer

VLT-606550D S40  60~65 325 430  PLD-V1238                     0W5C03M0X8  TSB-                  VMC-060065N VMC-060065T
VLT-657050D S40  65~70 350 455     TiN-H                                  30070      TXL-8 VMC-065070N VMC-065070T
VLT-707550D S40  70~75 375 480
                                                                                                VMC-070075N VMC-070075T
                                                                          3T5S0B9-0
VLT-758050D S40  75~80 400 505  PLD-V1645 WCMX                                       TXL-15 VMC-075080N VMC-075080T
                                   TiN-H 06T308

※ ø60~ø80 : 외측 카트리지를 컷팅하여 직경을 조절합니다.

※ ø60~ø80 : Cut the outer cartridge and setting.(adjust 5mm)

•VLT 드릴 가공 동영상을 보시려면, 오른쪽 QR코드를 스캔하세요.
•Please scan the QR code if you want to see VLT drill testing sample video.

▶ VLT A TYPE ø25mm~ø40mm(Standard Type)
▶ VLT B TYPE ø41mm~ø59mm(Single Insert Cartridge Type)
▶ VLT C TYPE ø60mm~ø80mm(Dual Insert Cartridge Type)
