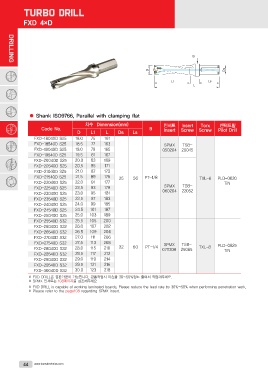

Page 46 - koreatechnics

FXD 4×D

DRILLING

● Shank ISO9766, Parallel with clamping flat

Code No. 치수 Dimension(mm) B 인서트 Insert Torx 센터드릴
D L1 L Ds Ls Insert Screw Screw Pilot Drill

FXD-18040D S25 18.0 75 161 SPMX TSB-
FXD-18540D S25 18.5 77 163 050204 20045
FXD-19040D S25 19.0 79 165
FXD-19540D S25 19.5 81 167 25 56 PT-1/8 TXL-6 PLD-0620
FXD-20040D S25 20.0 83 169 32 TiN
FXD-20540D S25 20.5 85 171 SPMX TSB-
FXD-21040D S25 21.0 87 173 060204 22052
FXD-21540D S25 21.5 89 175
FXD-22040D S25 22.0 91 177 60 PT-1/4 SPMX TSB- TXL-8 PLD-0825
FXD-22540D S25 22.5 93 179 07T308 25065 TiN
FXD-23040D S25 23.0 95 181
FXD-23540D S25 23.5 97 183
FXD-24040D S25 24.0 99 185
FXD-24540D S25 24.5 101 187
FXD-25040D S25 25.0 103 189
FXD-25540D S32
FXD-26040D S32 25.5 105 200
FXD-26540D S32 26.0 107 202
FXD-27040D S32 26.5 109 204
FXD-27540D S32 27.0 111 206
FXD-28040D S32 27.5 113 208
FXD-28540D S32 28.0 115 210
FXD-29040D S32 28.5 117 212
FXD-29540D S32 29.0 119 214
FXD-30040D S32 29.5 121 216
30.0 123 218

※ FXD DRILL은 겹판가공이 가능합니다. 관통작업시 이송을 30~50%정도 줄여서 작업해주세요.
※ SPMX 인서트는 108페이지를 참조해주세요

※ FXD DRILL is capable of working laminated boards. Please reduce the feed rate by 30%~50% when performing penetration work.
※ Please refer to the page108 regarding SPMX insert.
