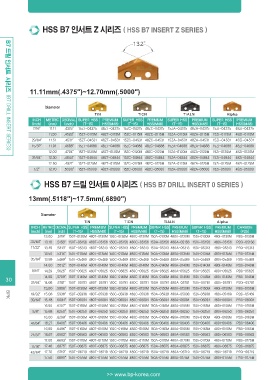

HSS B7 인서트 Z 시리즈 ( HSS B7 INSERT Z SERIES )

B7 드릴 인서트 시리즈 (B7 DRILL INSERT SERIES) 11.11mm(.4375″)~12.70mm(.5000″)

Diameter

TiN TiCN TiALN Alpha

INCH METRIC DECIMAL SUPER HSS PREMIUM SUPER HSS PREMIUM SUPER HSS PREMIUM SUPER HSS PREMIUM
(inch) (mm) (inch) (T-15) HSS(M48) (T-15) HSS(M48) (T-15) HSS(M48) (T-15) HSS(M48)

7/16″ 11.11 .4375″ 15ZT-04375 48ZT-04375 15ZC-04375 48ZC-04375 15ZA-04375 48ZA-04375 15Zi-04375 48Zi-04375

11.50 .4528″ 15ZT-0115M 48ZT-0115M 15ZC-0115M 48ZC-0115M 15ZA-0115M 48ZA-0115M 15Zi-0115M 48Zi-0115M

29/64″ 11.51 .4531″ 15ZT-04531 48ZT-04531 15ZC-04531 48ZC-04531 15ZA-04531 48ZA-04531 15Zi-04531 48Zi-04531

15/32″ 11.91 .4688″ 15ZT-04688 48ZT-04688 15ZC-04688 48ZC-04688 15ZA-04688 48ZA-04688 15Zi-04688 48Zi-04688

12.00 .4724″ 15ZT-0120M 48ZT-0120M 15ZC-0120M 48ZC-0120M 15ZA-0120M 48ZA-0120M 15Zi-0120M 48Zi-0120M

31/64″ 12.30 .4844″ 15ZT-04844 48ZT-04844 15ZC-04844 48ZC-04844 15ZA-04844 48ZA-04844 15Zi-04844 48Zi-04844

12.50 .4921″ 15ZT-0125M 48ZT-0125M 15ZC-0125M 48ZC-0125M 15ZA-0125M 48ZA-0125M 15Zi-0125M 48Zi-0125M

1/2″ 12.70 .5000″ 15ZT-05000 48ZT-05000 15ZC-05000 48ZC-05000 15ZA-05000 48ZA-05000 15Zi-05000 48Zi-05000

HSS B7 드릴 인서트 0 시리즈 ( HSS B7 DRILL INSERT 0 SERIES )

13mm(.5118″)~17.5mm(.6890″)

Diameter

TiN TiCN TiALN Alpha

INCH METRIC DECIMAL SUPER HSS PREMIUM SUPER HSS PREMIUM SUPER HSS PREMIUM SUPER HSS PREMIUM CARBIDE
(inch) (mm) (inch) (T-15) HSS(M48) (T-15) HSS(M48) (T-15) HSS(M48) (T-15) HSS(M48) (P25)

13.00 .5118″ 150T-0130M 480T-0130M 150C-0130M 480C-0130M 150A-0130M 480A-0130M 150i-0130M 480i-0130M P20i-0130M

33/64″ 13.10 .5156″ 150T-05156 480T-05156 150C-05156 480C-05156 150A-05156 480A-05156 150i-05156 480i-05156 P20i-05156

17/32″ 13.49 .5313″ 150T-05313 480T-05313 150C-05313 480C-05313 150A-05313 480A-05313 150i-05313 480i-05313 P20i-05313

13.50 .5315″ 150T-0135M 480T-0135M 150C-0135M 480C-0135M 150A-0135M 480A-0135M 150i-0135M 480i-0135M P20i-0135M

35/64″ 13.89 .5469″ 150T-05469 480T-05469 150C-05469 480C-05469 150A-05469 480A-05469 150i-05469 480i-05469 P20i-05469

14.00 .5512″ 150T-0140M 480T-0140M 150C-0140M 480C-0140M 150A-0140M 480A-0140M 150i-0140M 480i-0140M P20i-0140M

9/16″ 14.29 .5625″ 150T-05625 480T-05625 150C-05625 480C-05625 150A-05625 480A-05625 150i-05625 480i-05625 P20i-05625

30 14.50 .5709″ 150T-0145M 480T-0145M 150C-0145M 480C-0145M 150A-0145M 480A-0145M 150i-0145M 480i-0145M P20i-0145M
37/64″ 14.68 .5781″ 150T-05781 480T-05781 150C-05781 480C-05781 150A-05781 480A-05781 150i-05781 480i-05781 P20i-05781

15.00 .5906″ 150T-0150M 480T-0150M 150C-0150M 480C-0150M 150A-0150M 480A-0150M 150i-0150M 480i-0150M P20i-0150M

19/32″ 15.08 .5938″ 150T-05938 480T-05938 150C-05938 480C-05938 150A-05938 480A-05938 150i-05938 480i-05469 P20i-05469

39/64″ 15.48 .6094″ 150T-06094 480T-06094 150C-06094 480C-06094 150A-06094 480A-06094 150i-06094 480i-06094 P20i-06094

15.50 .6102″ 150T-0155M 480T-0155M 150C-0155M 480C-0155M 150A-0155M 480A-0155M 150i-0155M 480i-0155M P20i-0155M

5/8″ 15.88 .6250″ 150T-06250 480T-06250 150C-06250 480C-06250 150A-06250 480A-06250 150i-06250 480i-06250 P20i-06250

16.00 .6299″ 150T-0160M 480T-0160M 150C-0160M 480C-0160M 150A-0160M 480A-0160M 150i-0160M 480i-0160M P20i-0160M

41/64″ 16.27 .6406″ 150T-06406 480T-06406 150C-06406 480C-06406 150A-06406 480A-06406 150i-06406 480i-06406 P20i-06406

16.50 .6496″ 150T-0165M 480T-0165M 150C-0165M 480C-0165M 150A-0165M 480A-0165M 150i-0165M 480i-0165M P20i-0165M

21/32″ 16.67 .6563″ 150T-06563 480T-06563 150C-06563 480C-06563 150A-06563 480A-06563 150i-06563 480i-06563 P20i-06563

17.00 .6693″ 150T-0170M 480T-0170M 150C-0170M 480C-0170M 150A-0170M 480A-0170M 150i-0170M 480i-0170M P20i-0170M

11/16″ 17.46 .6875″ 150T-06875 480T-06875 150C-06875 480C-06875 150A-06875 480A-06875 150i-06875 480i-06875 P20i-06875

43/64″ 17.70 .6719″ 150T-06719 480T-06719 150C-06719 480C-06719 150A-06719 480A-06719 150i-06719 480i-06719 P20i-06719

17.50 .6890″ 150T-0175M 480T-0175M 150C-0175M 480C-0175M 150A-0175M 480A-0175M 150i-0175M 480i-0175M P20i-0175M
