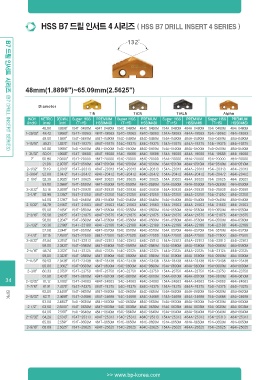

Page 32 - bpk_brill

HSS B7 드릴 인서트 4 시리즈 ( HSS B7 DRILL INSERT 4 SERIES )

B7 드릴 인서트 시리즈 (B7 DRILL INSERT SERIES) 48mm(1.8898″)~65.09mm(2.5625″)

Diameter

TiN TiCN TiALN Alpha

INCH METRIC DECIMAL Super HSS PREMIUM Super HSS PREMIUM Super HSS PREMIUM Super HSS PREMIUM
(inch) (mm) (inch) (T-15) HSS(M48) (T-15) HSS(M48) (T-15) HSS(M48) (T-15) HSS(M48)

48.00 1.8898″ 154T-0480M 484T-0480M 154C-0480M 484C-0480M 154A-0480M 484A-0480M 154i-0480M 484i-0480M

1-29/32″ 48.42 1.9063″ 154T-19063 484T-19063 154C-19063 484C-19063 154A-19063 484A-19063 154i-19063 484i-19063

49.00 1.9291″ 154T-0490M 484T-0490M 154C-0490M 484C-0490M 154A-0490M 484A-0490M 154i-0490M 484i-0490M

1-15/16″ 49.21 1.9375″ 154T-19375 484T-19375 154C-19375 484C-19375 154A-19375 484A-19375 154i-19375 484i-19375

50.00 1.9685″ 154T-0500M 484T-0500M 154C-0500M 484C-0500M 154A-0500M 484A-0500M 154i-0500M 484i-0500M

1-31/32″ 50.01 1.9688″ 154T-19688 484T-19688 154C-19688 484C-19688 154A-19688 484A-19688 154i-19688 484i-19688

2″ 50.80 2.0000″ 154T-20000 484T-20000 154C-20000 484C-20000 154A-20000 484A-20000 154i-20000 484i-20000

21.00 2.0078″ 154T-0510M 484T-0510M 154C-0510M 484C-0510M 154A-0510M 484A-0510M 154i-0510M 484i-0510M

2-1/32″ 51.19 2.0313″ 154T-20313 484T-20313 154C-20313 484C-20313 154A-20313 484A-20313 154i-20313 484i-20313

2-3/64″ 52.00 2.0472″ 154T-20472 484T-20472 154C-20472 484C-20472 154A-20472 484A-20472 154i-20472 484i-20472

2-1/16″ 52.39 2.0625″ 154T-20625 484T-20625 154C-20625 484C-20625 154A-20625 484A-20625 154i-20625 484i-20625

53.00 2.0866″ 154T-0530M 484T-0530M 154C-0530M 484C-0530M 154A-0530M 484A-0530M 154i-0530M 484i-0530M

2-3/32″ 53.18 2.0938″ 154T-20938 484T-20938 154C-20938 484C-20938 154A-20938 484A-20938 154i-20938 484i-20938

2-1/8″ 53.98 2.1250″ 154T-21250 484T-21250 154C-21250 484C-21250 154A-21250 484A-21250 154i-21250 484i-21250

54.00 2.1260″ 154T-0540M 484T-0540M 154C-0540M 484C-0540M 154A-0540M 484A-0540M 154i-0540M 484i-0540M

2-5/32″ 54.79 2.1563″ 154T-21563 484T-21563 154C-21563 484C-21563 154A-21563 484A-21563 154i-21563 484i-21563

55.00 2.1654″ 154T-0550M 484T-0550M 154C-0550M 484C-0550M 154A-0550M 484A-0550M 154i-0550M 484i-0550M

2-3/16″ 55.56 2.1875″ 154T-21875 484T-21875 154C-21875 484C-21875 154A-21875 484A-21875 154i-21875 484i-21875

56.00 2.2047″ 154T-0560M 484T-0560M 154C-0560M 484C-0560M 154A-0560M 484A-0560M 154i-0560M 484i-0560M

2-7/32″ 56.36 2.2188″ 154T-22188 484T-22188 154C-22188 484C-22188 154A-22188 484A-22188 154i-22188 484i-22188

57.00 2.2441″ 154T-0570M 484T-0570M 154C-0570M 484C-0570M 154A-0570M 484A-0570M 154i-0570M 484i-0570M

2-1/4″ 57.15 2.2500″ 154T-22500 484T-22500 154C-22500 484C-22500 154A-22500 484A-22500 154i-22500 484i-22500

2-9/32″ 57.94 2.2813″ 154T-22813 484T-22813 154C-22813 484C-22813 154A-22813 484A-22813 154i-22813 484i-22813

58.00 2.2835″ 154T-0580M 484T-0580M 154C-0580M 484C-0580M 154A-0580M 484A-0580M 154i-0580M 484i-0580M

2-5/16″ 58.74 2.3125″ 154T-23125 484T-23125 154C-23125 484C-23125 154A-23125 484A-23125 154i-23125 484i-23125

59.00 2.3228″ 154T-0590M 484T-0590M 154C-0590M 484C-0590M 154A-0590M 484A-0590M 154i-0590M 484i-0590M

2-11/32″ 59.53 2.3438″ 154T-23438 484T-23438 154C-23438 484C-23438 154A-23438 484A-23438 154i-23438 484i-23438

60.00 2.3662″ 154T-0600M 484T-0600M 154C-0600M 484C-0600M 154A-0600M 484A-0600M 154i-0600M 484i-0600M

2-3/8″ 60.33 2.3750″ 154T-23750 484T-23750 154C-23750 484C-23750 154A-23750 484A-23750 154i-23750 484i-23750

34 61.00 2.4016″ 154T-0610M 484T-0610M 154C-0610M 484C-0610M 154A-0610M 484A-0610M 154i-0610M 484i-0610M
2-13/32″ 61.12 2.1063″ 154T-24063 484T-24063 154C-24063 484C-24063 154A-24063 484A-24063 154i-24063 484i-24063

2-7/16″ 61.91 2.4375″ 154T-24375 484T-24375 154C-24375 484C-24375 154A-24375 484A-24375 154i-24375 484i-24375

62.00 2.4409″ 154T-0620M 484T-0620M 154C-0620M 484C-0620M 154A-0620M 484A-0620M 154i-0620M 484i-0620M

2-15/32″ 62.71 2.4688″ 154T-24688 484T-24688 154C-24688 484C-24688 154A-24688 484A-24688 154i-24688 484i-24688

63.00 2.4803″ 154T-0630M 484T-0630M 154C-0630M 484C-0630M 154A-0630M 484A-0630M 154i-0630M 484i-0630M

2-1/2″ 63.50 2.5000″ 154T-0635M 484T-0635M 154C-0635M 484C-0635M 154A-0635M 484A-0635M 154i-0635M 484i-0635M

64.00 2.5197″ 154T-0640M 484T-0640M 154C-0640M 484C-0640M 154A-0640M 484A-0640M 154i-0640M 484i-0640M

2-17/32″ 64.29 2.5313″ 154T-25313 484T-25313 154C-25313 484C-25313 154A-25313 484A-25313 154i-25313 484i-25313

65.00 2.5591″ 154T-0650M 484T-0650M 154C-0650M 484C-0650M 154A-0650M 484A-0650M 154i-0650M 484i-0650M

2-9/16″ 65.09 2.5625″ 154T-25625 484T-25625 154C-25625 484C-25625 154A-25625 484A-25625 154i-25625 484i-25625
