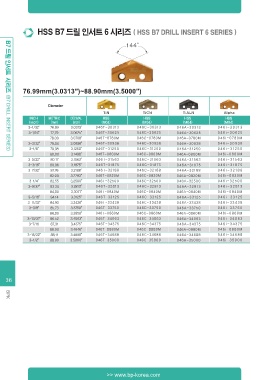

HSS B7 드릴 인서트 6 시리즈 ( HSS B7 DRILL INSERT 6 SERIES )

B7 드릴 인서트 시리즈 (B7 DRILL INSERT SERIES) 76.99mm(3.0313″)~88.90mm(3.5000″)

Diameter

INCH METRIC DECIMAL TiN TiCN TiALN Alpha
(inch) (mm) (inch) HSS HSS HSS HSS
3-1/32″ 76.99 (M04) (M04) (M04) (M04)
3-1/16″ 77.79 3.0313″ 046T-30313 046C-30313 046A-30313 046i-30313
78.00 3.0625″ 046T-30625 046C-30625 046A-30625 046i-30625
3-3/32″ 78.58 3.0709″ 046T-0780M 046C-0780M 046A-0780M 046i-0780M
3-1/8″ 79.38 3.0938″ 046T-30938 046C-30938 046A-30938 046i-30938
80.00 3.1250″ 046T-31250 046C-31250 046A-31250 046i-31250
3-5/32″ 80.17 3.1496″ 046T-0800M 046C-0800M 046A-0800M 046i-0800M
3-3/16″ 80.96 3.1563″ 046T-31563 046C-31563 046A-31563 046i-31563
3-7/32″ 81.76 3.1875″ 046T-31875 046C-31875 046A-31875 046i-31875
82.00 3.2188″ 046T-32188 046C-32188 046A-32188 046i-32188
3-1/4″ 82.55 3.2283″ 046T-0820M 046C-0820M 046A-0820M 046i-0820M
3-9/32″ 83.34 3.2500″ 046T-32500 046C-32500 046A-32500 046i-32500
84.00 3.2813″ 046T-32813 046C-32813 046A-32813 046i-32813
3-5/16″ 84.14 3.3071″ 046T-0840M 046C-0840M 046A-0840M 046i-0840M
3-11/32″ 84.93 3.3125″ 046T-33125 046C-33125 046A-33125 046i-33125
3-3/8″ 85.73 3.3438″ 046T-33438 046C-33438 046A-33438 046i-33438
86.00 3.3750″ 046T-33750 046C-33750 046A-33750 046i-33750
3-13/32″ 86.52 3.3858″ 046T-0860M 046C-0860M 046A-0860M 046i-0860M
3-7/16 87.31 3.4063″ 046T-34063 046C-34063 046A-34063 046i-34063
88.00 3.4375″ 046T-34375 046C-34375 046A-34375 046i-34375
3-15/32″ 88.11 3.4646″ 046T-0880M 046C-0880M 046A-0880M 046i-0880M
3-1/2″ 88.90 3.4688″ 046T-34688 046C-34688 046A-34688 046i-34688
3.5000″ 046T-35000 046C-35000 046A-35000 046i-35000
