P. 35

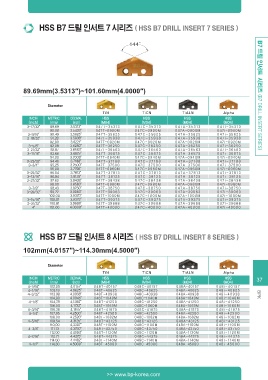

HSS B7 드릴 인서트 7 시리즈 ( HSS B7 DRILL INSERT 7 SERIES )
89.69mm(3.5313″)~101.60mm(4.0000″) B7 드릴 인서트 시리즈 (B7 DRILL INSERT SERIES)
Diameter
INCH METRIC DECIMAL TiN TiCN TiALN Alpha
(inch) (mm) (inch) HSS HSS HSS HSS
3-17/32″ 89.69 (M04) (M04) (M04) (M04)
3-9/16″ 90.00 3.5313″ 047T-35313 047C-35313 047A-35313 047i-35313
3-19/32″ 90.49 3.5433″ 047T-0900M 047C-0900M 047A-0900M 047i-0900M
3-5/8″ 91.28 3.5625″ 047T-35625 047C-35625 047A-35625 047i-35625
3-21/32″ 92.00 3.5938″ 047T-35938 047C-35938 047A-35938 047i-35938
3-11/16″ 92.08 3.6221″ 047T-0920M 047C-0920M 047A-0920M 047i-0920M
3-23/32″ 92.87 3.6250″ 047T-36250 047C-36250 047A-36250 047i-36250
3-3/4″ 93.66 3.6563″ 047T-36563 047C-36563 047A-36563 047i-36563
3-25/32″ 94.00 3.6875″ 047T-36875 047C-36875 047A-36875 047i-36875
3-13/16″ 94.46 3.7008″ 047T-0940M 047C-0940M 047A-0940M 047i-0940M
3-27/32″ 95.25 3.7188″ 047T-37188 047C-37188 047A-37188 047i-37188
3-7/8″ 96.00 3.7500″ 047T-37500 047C-37500 047A-37500 047i-37500
3-29/32″ 96.04 3.7795″ 047T-0960M 047C-0960M 047A-0960M 047i-0960M
3-15/16″ 96.84 3.7813″ 047T-37813 047C-37813 047A-37813 047i-37813
3-31/32″ 97.63 3.8125″ 047T-38125 047C-38125 047A-38125 047i-38125
98.00 3.8438″ 047T-38438 047C-38438 047A-38438 047i-38438
4″ 98.43 3.8583″ 047T-0980M 047C-0980M 047A-0980M 047i-0980M
99.22 3.8750″ 047T-38750 047C-38750 047A-38750 047i-38750
100.00 3.9063″ 047T-39063 047C-39063 047A-39063 047i-39063
100.01 3.9370″ 047T-1000M 047C-1000M 047A-1000M 047i-1000M
100.81 3.9375″ 047T-39375 047C-39375 047A-39375 047i-39375
101.60 3.9688″ 047T-39688 047C-39688 047A-39688 047i-39688
4.0000″ 047T-40000 047C-40000 047A-40000 047i-40000
HSS B7 드릴 인서트 8 시리즈 ( HSS B7 DRILL INSERT 8 SERIES )
102mm(4.0157″)~114.30mm(4.5000″)
Diameter
INCH METRIC DECIMAL TiN TiCN TiALN Alpha 37
(inch) (mm) (inch) HSS HSS HSS HSS
4-1/64″ 102.00 (M04) (M04) (M04) (M04)
4-1/16″ 103.19 4.0157″ 048T-40157 048C-40157 048A-40157 048i-40157
4-3/32″ 103.98 4.0625″ 048T-40625 048C-40625 048A-40625 048i-40625
4-1/8″ 104.00 4.0938″ 048T-40938 048C-40938 048A-40938 048i-40938
4-3/16″ 104.78 4.0945″ 048T-1040M 048C-1040M 048A-1040M 048i-1040M
4-1/4″ 106.00 4.1250″ 048T-41250 048C-41250 048A-41250 048i-41250
4-5/16″ 106.36 4.1732″ 048T-1060M 048C-1060M 048A-1060M 048i-1060M
4-3/8″ 107.95 4.1875″ 048T-41875 048C-41875 048A-41875 048i-41875
4-7/16″ 108.00 4.2500″ 048T-42500 048C-42500 048A-42500 048i-42500
4-1/2″ 109.54 4.2520″ 048T-1082M 048C-1082M 048A-1082M 048i-1082M
110.00 4.3125″ 048T-43125 048C-43125 048A-43125 048i-43125
111.13 4.3307″ 048T-1100M 048C-1100M 048A-1100M 048i-1100M
112.00 4.3750″ 048T-43750 048C-43750 048A-43750 048i-43750
112.71 4.4094″ 048T-1120M 048C-1120M 048A-1120M 048i-1120M
114.00 4.4375″ 048T-44375 048C-44375 048A-44375 048i-44375
114.30 4.4482″ 048T-1140M 048C-1140M 048A-1140M 048i-1140M
4.5000″ 048T-45000 048C-45000 048A-45000 048i-45000
