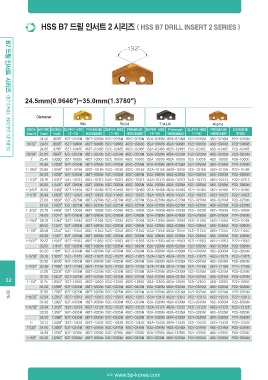

HSS B7 드릴 인서트 2 시리즈 ( HSS B7 DRILL INSERT 2 SERIES )

B7 드릴 인서트 시리즈 (B7 DRILL INSERT SERIES) 24.5mm(0.9646″)~35.0mm(1.3780″)

Diameter

TiN TiCN TiALN Alpha

INCH METRIC DECIMAL SUPER HSS PREMIUM SUPER HSS PREMIUM SUPER HSS Premium SUPER HSS PREMIUM CARBIDE
(inch) (mm) (inch) (T-15) HSS(M48) (T-15) HSS(M48) (T-15) HSS(M48) (T-15) HSS(M48) (P25)

24.50 .9646″ 152T-0245M 482T-0245M 152C-0245M 482C-0245M 152A-0245M 482A-0245M 152i-0245M 482i-0245M P22i-0245M

31/32″ 24.61 .9688″ 152T-09688 482T-09688 152C-09688 482C-09688 152A-09688 482A-09688 152i-09688 482i-09688 P22i-09688

24.85 .9783″ 152T-02485 482T-02485 152C-02485 482C-02485 152A-02485 482A-02485 152i-02485 482i-02485 P22i-02485

63/64″ 25.00 .9843″ 152T-0250M 482T-0250M 152C-0250M 482C-0250M 152A-0250M 482A-0250M 152i-0250M 482i-0250M P22i-0250M

1″ 25.40 1.0000″152T-10000 482T-10000 152C-10000 482C-10000 152A-10000 482A-10000 152i-10000 482i-10000 P22i-10000

25.50 1.0039″152T-0255M 482T-0255M 152C-0255M 482C-0255M 152A-0255M 482A-0255M 152i-0255M 482i-0255M P22i-0255M

1-1/64″ 25.80 1.0156″152T-10156 482T-10156 152C-10156 482C-10156 152A-10156 482A-10156 152i-10156 482i-10156 P22i-10156

26.00 1.0236″152T-0260M 482T-0260M 152C-0260M 482C-0260M 152A-0260M 482A-0260M 152i-0260M 482i-0260M P22i-0260M

1-1/32″ 26.19 1.0313″152T-10313 482T-10313 152C-10313 482C-10313 152A-10313 482A-10313 152i-10313 482i-10313 P22i-10313

26.50 1.0431″152T-0265M 482T-0265M 152C-0265M 482C-0265M 152A-0265M 482A-0265M 152i-0265M 482i-0265M P22i-0265M

1-3/64″ 26.59 1.0469″152T-10469 482T-10469 152C-10469 482C-10469 152A-10469 482A-10469 152i-10469 482i-10469 P22i-10469

1-1/16″ 26.99 1.0625″152T-10625 482T-10625 152C-10625 482C-10625 152A-10625 482A-10625 152i-10625 482i-10625 P22i-10625

27.00 1.0630″152T-0270M 482T-0270M 152C-0270M 482C-0270M 152A-0270M 482A-0270M 152i-0270M 482i-0270M P22i-0270M

27.50 1.0827″152T-0275M 482T-0275M 152C-0275M 482C-0275M 152A-0275M 482A-0275M 152i-0275M 482i-0275M P22i-0275M

1-3/32″ 27.78 1.0938″152T-10938 482T-10938 152C-10938 482C-10938 152A-10938 482A-10938 152i-10938 482i-10938 P22i-10938

28.00 1.1024″152T-0280M 482T-0280M 152C-0280M 482C-0280M 152A-0280M 482A-0280M 152i-0280M 482i-0280M P22i-0280M

1-7/64″ 28.18 1.1094″152T-11094 482T-11094 152C-11094 482C-11094 152A-11094 482A-11094 152i-11094 482i-11094 P22i-11094

28.50 1.1220″ 152T-0285M 482T-0285M 152C-0285M 482C-0285M 152A-0285M 482A-0285M 152i-0285M 482i-0285M P22i-0285M

1-1/8″ 28.58 1.1250″152T-11250 482T-11250 152C-11250 482C-11250 152A-11250 482A-11250 152i-11250 482i-11250 P22i-11250

29.00 1.1417″ 152T-0290M 482T-0290M 152C-0290M 482C-0290M 152A-0290M 482A-0290M 152i-0290M 482i-0290M P22i-0290M

1-5/32″ 29.37 1.1563″ 152T-11563 482T-11563 152C-11563 482C-11563 152A-11563 482A-11563 152i-11563 482i-11563 P22i-11563

29.50 1.1614″ 152T-0295M 482T-0295M 152C-0295M 482C-0295M 152A-0295M 482A-0295M 152i-0295M 482i-0295M P22i-0295M

30.00 1.1811″ 152T-0300M 482T-0300M 152C-0300M 482C-0300M 152A-0300M 482A-0300M 152i-0300M 482i-0300M P22i-0300M

1-3/16″ 30.16 1.1875″ 152T-11875 482T-11875 152C-11875 482C-11875 152A-11875 482A-11875 152i-11875 482i-11875 P22i-11875

30.50 1.2008″152T-0305M 482T-0305M 152C-0305M 482C-0305M 152A-0305M 482A-0305M 152i-0305M 482i-0305M P22i-0305M

1-7/32″ 30.96 1.2188″ 152T-12188 482T-12188 152C-12188 482C-12188 152A-12188 482A-12188 152i-12188 482i-12188 P22i-12188

31.00 1.2205″152T-0310M 482T-0310M 152C-0310M 482C-0310M 152A-0310M 482A-0310M 152i-0310M 482i-0310M P22i-0310M

32 31.50 1.2402″152T-0315M 482T-0315M 152C-0315M 482C-0315M 152A-0315M 482A-0315M 152i-0315M 482i-0315M P22i-0315M
1-1/4″ 31.75 1.2500″152T-12500 482T-12500 152C-12500 482C-12500 152A-12500 482A-12500 152i-12500 482i-12500 P22i-12500

32.00 1.2598″152T-0320M 482T-0320M 152C-0320M 482C-0320M 152A-0320M 482A-0320M 152i-0320M 482i-0320M P22i-0320M

32.50 1.2795″152T-0325M 482T-0325M 152C-0325M 482C-0325M 152A-0325M 482A-0325M 152i-0325M 482i-0325M P22i-0325M

1-9/32″ 32.54 1.2813″ 152T-12813 482T-12813 152C-12813 482C-12813 152A-12813 482A-12813 152i-12813 482i-12813 P22i-12813

33.00 1.2992″152T-0330M 482T-0330M 152C-0330M 482C-0330M 152A-0330M 482A-0330M 152i-0330M 482i-0330M P22i-0330M

1-5/16″ 33.34 1.3125″ 152T-13125 482T-13125 152C-13125 482C-13125 152A-13125 482A-13125 152i-13125 482i-13125 P22i-13125

33.50 1.3187″ 152T-0335M 482T-0335M 152C-0335M 482C-0335M 152A-0335M 482A-0335M 152i-0335M 482i-0335M P22i-0335M

34.00 1.3386″152T-0340M 482T-0340M 152C-0340M 482C-0340M 152A-0340M 482A-0340M 152i-0340M 482i-0340M P22i-0340M

1- 34.13 1.3438″152T-13438 482T-13438 152C-13438 482C-13438 152A-13438 482A-13438 152i-13438 482i-13438 P22i-13438

11/32″ 34.50 1.3583″152T-0345M 482T-0345M 152C-0345M 482C-0345M 152A-0345M 482A-0345M 152i-0345M 482i-0345M P22i-0345M

34.93 1.3750″152T-137550 482T-137550 152C-137550 482C-137550 152A-137550 482A-137550 152i-137550 482i-137550 P22i-137550

1-3/8″ 35.00 1.3780″152T-0350M 482T-0350M 152C-0350M 482C-0350M 152A-0350M 482A-0350M 152i-0350M 482i-0350M P22i-0350M
