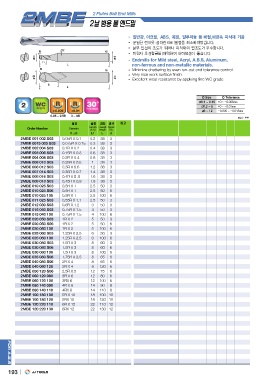

2 Flutes Ball End Mills

2

Endmills for Mild steel, Acryl, A.B.S, Aluminum,
non-ferrous and non-metallic materials.
Minimize chattering by even run-out and tolerance control.
Very nice work surface finish.
Excellent wear resistance by applying fine WC grade.

0.005 0.01 D Size D Tolerance
0.1 ~ 0.15 +0 ~ -0.005mm
+0 ~ -0.01mm
0.2 ~ 5 -0.005 ~ -0.015mm
6 ~ 12

0.05 ~ 2.5R 3 ~ 6R mm

Order Number Diameter Length Overall Shank
of cut Length Dia
2MBE 001 002 S03 RD L1 L d
2MBE 0015 003 S03
2MBE 002 004 S03 0.05R X 0.1 0.2 38 3
2MBE 003 006 S03 0.075R X 0.15 0.3 38 3
2MBE 004 008 S03 0.1R X 0.2 0.4 38 3
2MBE 005 010 S03 0.15R X 0.3 0.6 38 3
2MBE 006 012 S03 0.2R X 0.4 0.8 38 3
2MBE 007 014 S03 0.25R X 0.5 1 38 3
2MBE 008 016 S03 0.3R X 0.6 1.2 38 3
2MBE 009 018 S03 0.35R X 0.7 1.4 38 3
2MBE 010 025 S03 0.4R X 0 .8 1.6 38 3
2MBE 010 025 S06 0.45R X 0.9 1.8 38 3
2MBE 010 025 100 0.5R X 1 2.5 50 3
2MBE 011 025 S03 0.5R X 1 2.5 50 6
2MBE 012 030 S03 0.5R X 1 2.5 100 6
2MBE 015 040 S03 0.55R X 1.1 2.5 50 3
2MBE 015 040 100 0.6R X 1.2 3 50 3
2MBE 020 050 S03 0.75R X 1.5 4 50 3
2MBE 020 050 S06 0.75R X 1.5 4 100 6
2MBE 020 050 100 1R X 2 5 50 3
2MBE 025 060 S03 1R X 2 5 50 6
2MBE 025 060 100 1R X 2 5 100 6
2MBE 030 080 S03 1.25R X 2.5 6 50 3
2MBE 030 080 S06 1.25R X 2.5 6 100 6
2MBE 030 080 100 1.5R X 3 8 60 3
2MBE 035 080 S06 1.5R X 3 8 60 6
2MBE 040 080 S06 1.5R X 3 8 100 6
2MBE 040 080 120 1.75R X 3.5 8 65 6
2MBE 050 120 S06 2R X 4 8 65 6
2MBE 060 120 080 2R X 4 8 120 6
2MBE 060 120 100 2.5R X 5 12 75 6
2MBE 080 140 090 3R X 6 12 80 6
2MBE 080 140 110 3RX 6 12 100 6
2MBE 100 180 100 4R X 8 14 90 8
2MBE 100 180 120 4RX 8 14 110 8
2MBE 120 220 110 5R X 10 18 100 10
2MBE 120 220 130 5RX 10 18 120 10
6R X 12 22 110 12
6RX 12 22 130 12

FOR A.B.S
