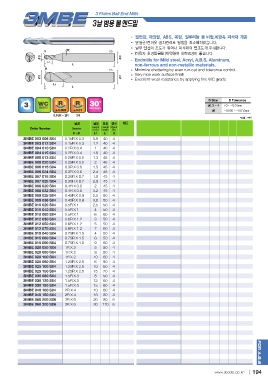

3 Flutes Ball End Mills

3

Endmills for Mild steel, Acryl, A.B.S, Aluminum,
non-ferrous and non-metallic materials.
Minimize chattering by even run-out and tolerance control.
Very nice work surface finish.
Excellent wear resistance by applying fine WC grade.

0.005 0.01 D Size D Tolerance
0.15R ~ 2R 3R 0.3 ~ 4 +0 ~ -0.01mm
-0.005 ~ -0.015mm
6

mm

Order Number Diameter Length Overall Shank
of cut Length Dia
3MBE 003 008 S04 RD L1 L d
3MBE 003 012 S04
3MBE 004 010 S04 0.15R X 0.3 0.8 40 4
3MBE 004 015 S04 0.15R X 0.3 1.2 40 4
3MBE 005 013 S04 0.2R X 0.4 1 40 4
3MBE 005 020 S04 0.2R X 0.4 1.5 40 4
3MBE 006 015 S04 0.25R X 0.5 1.3 45 4
3MBE 006 024 S04 0.25R X 0.5 2 45 4
3MBE 007 018 S04 0.3R X 0.6 1.5 45 4
3MBE 007 028 S04 0.3R X 0.6 2.4 45 4
3MBE 008 020 S04 0.35R X 0.7 1.8 45 4
3MBE 008 032 S04 0.35R X 0.7 2.8 45 4
3MBE 009 025 S04 0.4R X 0.8 2 45 4
3MBE 009 036 S04 0.4R X 0.8 3.2 45 4
3MBE 010 025 S04 0.45R X 0.9 2.5 50 4
3MBE 010 040 S04 0.45R X 0.9 3.6 50 4
3MBE 010 060 S04 0.5R X 1 2.5 50 4
3MBE 012 030 S04 0.5R X 1 4 50 4
3MBE 012 050 S04 0.5R X 1 6 60 4
3MBE 012 070 S04 0.6R X 1.2 3 50 4
3MBE 015 040 S04 0.6R X 1.2 5 50 4
3MBE 015 060 S04 0.6R X 1.2 7 60 4
3MBE 015 090 S04 0.75R X 1.5 4 50 4
3MBE 020 050 S04 0.75R X 1.5 6 50 4
3MBE 020 080 S04 0.75R X 1.5 9 60 4
3MBE 020 100 S04 1R X 2 5 50 4
3MBE 025 060 S04 1R X 2 8 50 4
3MBE 025 100 S04 1R X 2 10 60 4
3MBE 025 150 S04 1.25R X 2.5 6 50 4
3MBE 030 080 S04 1.25R X 2.5 10 60 4
3MBE 030 120 S04 1.25R X 2.5 15 70 4
3MBE 030 150 S04 1.5R X 3 8 50 4
3MBE 040 100 S04 1.5R X 3 12 60 4
3MBE 040 150 S04 1.5R X 3 15 80 4
3MBE 060 200 S06 2R X 4 10 60 4
3MBE 060 300 S06 2R X 4 15 80 4
3R X 6 20 80 6
3R X 6 30 110 6

FOR A.B.S
