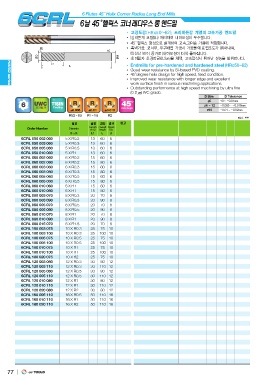

6 Flutes 45 Helix Corner Radius Long End Mills

6 45

HARD series Endmills for pre-hardened and hardened steel (HRc50~62)

Good wear resistance by Si-based PVD coating.

45 degree helix design for high speed, feed condition.

Improved wear resistance with longer edge and excellent

work surface finish in various machining applications.

Outstanding performance at high speed machining by ultra fine

(0.2 ) WC grade.

D Size D Tolerance

5 +0 ~ -0.01mm

6 ~ 12 -0.005 ~ -0.015mm

0.005 0.01 0.015 16 -0.01 ~ -0.02mm
R2
R0.2 ~ 0.5 R1 ~ 1.5 mm

Order Number Diameter Length Overall Shank
of cut Length Dia
6CRL 050 002 060 DR L1 L d
6CRL 050 003 060
6CRL 050 005 060 5 X R0.2 13 60 6
6CRL 050 010 060 5 X R0.3 13 60 6
6CRL 060 002 060 5 X R0.5 13 60 6
6CRL 060 002 080 5 X R1 13 60 6
6CRL 060 003 060 6 X R0.2 15 60 6
6CRL 060 003 080 6 X R0.2 15 80 6
6CRL 060 005 060 6 X R0.3 15 60 6
6CRL 060 005 080 6 X R0.3 15 80 6
6CRL 060 010 060 6 X R0.5 15 60 6
6CRL 060 010 080 6 X R0.5 15 80 6
6CRL 080 003 070 6 X R1 15 60 6
6CRL 080 003 090 6 X R1 15 80 6
6CRL 080 005 070 8 X R0.3 20 70 8
6CRL 080 005 090 8 X R0.3 20 90 8
6CRL 080 010 070 8 X R0.5 20 70 8
6CRL 080 010 090 8 X R0.5 20 90 8
6CRL 080 015 070 8 X R1 20 70 8
6CRL 100 003 075 8 X R1 20 90 8
6CRL 100 003 100 8 X R1.5 20 70 8
6CRL 100 005 075 10 X R0.3 25 75 10
6CRL 100 005 100 10 X R0.3 25 100 10
6CRL 100 010 075 10 X R0.5 25 75 10
6CRL 100 010 100 10 X R0.5 25 100 10
6CRL 100 020 075 10 X R1 25 75 10
6CRL 120 003 080 10 X R1 25 100 10
6CRL 120 003 110 10 X R2 25 75 10
6CRL 120 005 080 12 X R0.3 30 80 12
6CRL 120 005 110 12 X R0.3 30 110 12
6CRL 120 010 080 12 X R0.5 30 80 12
6CRL 120 010 110 12 X R0.5 30 110 12
6CRL 120 020 080 12 X R1 30 80 12
6CRL 160 005 110 12 X R1 30 110 12
6CRL 160 010 110 12 X R2 30 80 12
6CRL 160 020 110 16 X R0.5 50 110 16
16 X R1 50 110 16
16 X R2 50 110 16
