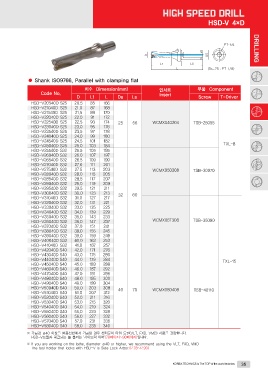

HSD-V 4×D

DRILLING

● Shank ISO9766, Parallel with clamping flat

Code No. 치수 Dimension(mm) 인서트 부품 Component
HSD-V20540D S25 Insert Screw T-Driver
HSD-V21040D S25 D L1 L Ds Ls WCMX040204 TSB-25055
HSD-V21540D S25 56 WCMX050308
HSD-V22040D S25 20.5 85 166 25 60 WCMX06T308 TXL-8
HSD-V22540D S25 21.0 87 168 32 TSB-30070
HSD-V23040D S25 21.5 89 170 40 70 WCMX080408
HSD-V23540D S25 22.0 91 172 TSB-35090
HSD-V24040D S25 22.5 93 174
HSD-V24540D S25 23.0 95 176 TXL-15
HSD-V25040D S25 23.5 97 178 TSB-40110
HSD-V25540D S32 24.0 99 180
HSD-V26040D S32 24.5 101 182
HSD-V26540D S32 25.0 103 184
HSD-V27040D S32 25.5 105 195
HSD-V27540D S32 26.0 107 197
HSD-V28040D S32 26.5 109 199
HSD-V28540D S32 27.0 111 201
HSD-V29040D S32 27.5 113 203
HSD-V29540D S32 28.0 115 205
HSD-V30040D S32 28.5 117 207
HSD-V31040D S32 29.0 119 209
HSD-V32040D S32 29.5 121 211
HSD-V33040D S32 30.0 123 213
HSD-V34040D S32 31.0 127 217
HSD-V35040D S32 32.0 131 221
HSD-V36040D S32 33.0 135 225
HSD-V37040D S32 34.0 139 229
HSD-V38040D S32 35.0 143 233
HSD-V39040D S32 36.0 147 237
HSD-V40040D S32 37.0 151 241
HSD-V41040D S32 38.0 155 245
HSD-V42040D S40 39.0 159 249
HSD-V43040D S40 40.0 163 253
HSD-V44040D S40 41.0 167 257
HSD-V45040D S40 42.0 171 276
HSD-V46040D S40 43.0 175 280
HSD-V47040D S40 44.0 179 284
HSD-V48040D S40 45.0 183 288
HSD-V49040D S40 46.0 187 292
HSD-V50040D S40 47.0 191 296
HSD-V51040D S40 48.0 195 300
HSD-V52040D S40 49.0 199 304
HSD-V53040D S40 50.0 203 308
HSD-V54040D S40 51.0 207 312
HSD-V55040D S40 52.0 211 316
HSD-V56040D S40 53.0 215 320
HSD-V57040D S40 54.0 219 324
HSD-V58040D S40 55.0 223 328
56.0 227 332
57.0 231 336
58.0 235 340

※ 가공경 ø40 이상을 범용선반에서 가공할 경우 센터붙이 타입 드릴(VLT, FXD, VMD) 사용을 권장합니다.
HSD-V드릴과 체결되는 툴 홀더는 '사이드락 아버'(78페이지~90페이지)입니다.

※ If you are working on the lathe, diameter ø40 or higher, we recommend using the VLT, FXD, VMD
The tool holder that locks with HSD-V is Side Lock Arbor.(P.78~P.90)
