P. 779

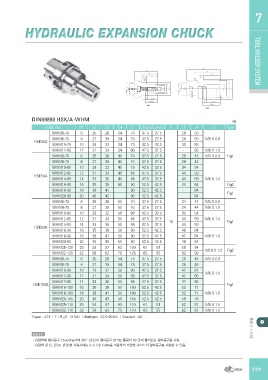

HYDRAULIC EXPANSION CHUCK TOOL HOLDER7
TOOL HOLDER SYSTEM
DIN69893 HSK/A-WHM ㎜
CODE NO. D1 D2 D3 D4 L1 L2max L2min V L3 L4 G Type
WHM6-70 6 25 28 34 70 37.5 27.5 28 50
HSK40A WHM8-70 8 27 30 34 70 37.5 27.5 28 50 M5 X 0.8
WHM10-75 10 29 32 34 75 42.5 32.5 34 55
WHM12-85 12 31 34 34 80 47.5 37.5 - 65 M6 X 1.0
WHM6-70 6 25 28 40 70 37.5 27.5 28 44 M5 X 0.8 Fig1
WHM8-70 8 27 30 40 70 37.5 27.5 28 44
WHM10-80 10 29 32 40 75 42.5 32.5 34 54
HSK50A WHM12-85 12 31 34 40 85 47.5 37.5 44 59
WHM14-85 14 33 36 40 85 47.5 37.5 44 59 M6 X 1.0
WHM16-90 16 35 38 60 90 52.5 42.5 30 64 Fig2
WHM18-90 18 38 41 - 90 52.5 42.5 - 64 Fig1
WHM20-90 20 40 42 - 90 52.5 42.5 - 64
WHM6-70 6 25 28 50 70 37.5 27.5 24 44 M5 X 0.8
WHM8-70 8 27 30 50 70 37.5 27.5 24 44 M6 X 1.0
WHM10-80 10 29 32 50 80 42.5 32.5 35 54
WHM12-85 12 31 34 50 85 47.5 37.5 10 40 59 M6 X 1.0 Fig1
WHM14-85 14 33 36 50 85 47.5 37.5 40 59
HSK63A WHM16-90 16 35 38 50 46
90 52.5 42.5 64
WHM18-90 18 38 41 50 90 52.5 42.5 47 64 M8 X 1.0
WHM20-90 20 40 43 50 90 52.5 42.5 48 64
WHM25-120 25 53 57 63 120 61 51 59 94 M16 X 1.0 Fig2
WHM32-125 32 58 63 75 125 65 55 63 99
WHM6-75 6 25 28 54 75 37.5 27.5 26 46 M5 X 0.8
WHM8-75 8 27 30 54 75 37.5 27.5 26 46
WHM10-90 10 29 32 50 90 42.5 32.5 42 61 M6 X 1.0
WHM12-95 12 31 34 50 95 47.5 37.5 47 66
HSK100A WHM14-95 14 33 36 50 95 47.5 37.5 47 66 Fig1
WHM16-100 16 35 38 50 100 52.5 42.5 53 71
WHM18-100 18 38 41 50 100 52.5 42.5 53 71 M8 X 1.0
WHM20-105 20 40 43 50 105 52.5 42.5 59 76
WHM25-110 25 53 57 63 110 61 51 62 81 M8 X 1.0
WHM32-110 32 58 63 75 110 65 55 62 81 M8 X 1.0
Taper : AT3 | T.I.R ≥5 : /2.5xD | Bal/rpm : G2.5/20000 | Coolant : AD 툴홀더 시스템
NOTE
ㆍ유 압척에 절삭공구 Chucking시에 Ø6~Ø32의 절삭공구 샹크는 툴공차 h6 안에 들어오는 절삭공구를 사용.
ㆍ유압척 Ø12, Ø20, Ø32형 사용시에는 D or OD Collet을 이용하여 다양한 사이즈의 절삭공구를 사용할 수 있음.
