P. 783

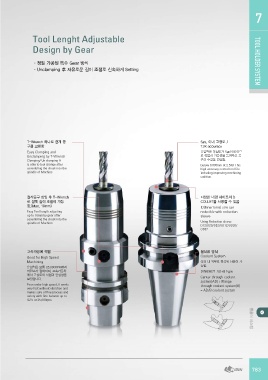

HTYoDolRLeAngUhLt AICdjuEstXabPleANSION CHUCK                   TOOL HOLDER   7
  Design by Gear
                                                                           TOOL HOLDER SYSTEM
    ㆍ정밀 가공된 특수 Gear 방식
    ㆍUnclamping 후 자유로운 길이 조절로 신속하게 Setting

T-Wrench 하나로 쉽게 공                5㎛, 이내 고정도 /
구를 교환함                           T.IR accuracy
Easy Clamping and
Unclamping by T-Wrench           유압척은 동심도가 5㎛이내 이므
                                 로 작업시 가공성을 높여주고 공
Clamping/ Un clamping It         구의 수명을 연장함.
is able to tool change after     Below 0.005mm at 2.5XD This
assembling the chuck into the    high accuracy extend tool life
spindle of Machine               including improving mechining
                                 codition.
절삭공구 삽입 후 T-Wrench
로 쉽게 길이 조절이 가능                   다양한 내경 사이즈의 D
함.(Max. 10mm)                    COLLET를 사용할 수 있음
                                 ID(Inner bore) size can
Easy Tool length adjusting       reducible with reduction
up to 10mm by gear after         sleeve
assembling the chuck into the
spindle of Machine               Using Reduction sleeve
                                 D12/D20/D32/OD12/OD20/
고속가공에 적합                         OD32
Good for High Speed
Machining                        절삭유 방식
                                 Coolant System
유압척은 보통 25,000RPM까지
바란스가 잡혀지며, 고속가공하                 샹크 내 외부로 절삭유 사용이 가
에서 고정도의 작업과 안정성을                 능함.
보장합니다.
Even under high speed, it works  DIN69871 AD+B type
very fast without vibration and  Center through coolant
makes sure of fine process and   system(AD) + Flange
safety with fine balance up to   through coolant system(B)
G2.5 at 25,000rpm                = AD/B coolant system

                                                             783툴홀더툴시홀스더템시스템
