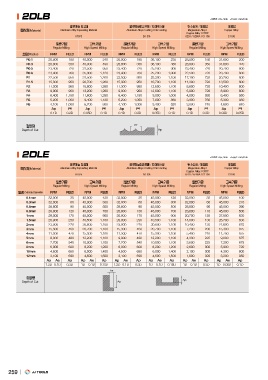

P. 276
2DLB RPM : rev./min Feed : mm/min
Material Aluminum Alloy Expanding Material Aluminum Alloys Casting / Die Casting Magnesium Alloy / Copper Allloy
A7075 Si1 3% Copper Allloy / CFRP C1100
AZ91 / AZ80A / C1100
Regular Milling High Speed Milling Regular Milling High Speed Milling Regular Milling High Speed Milling
Radius RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED
R0.1 28,800 180 40,000 240 28,800 180 36,100 230 28,800 180 31,600 200
R0.3 28,800 350 40,000 490 28,800 350 36,100 480 28,800 350 31,600 420
R0.5 23,400 720 31,500 950 23,400 720 25,200 900 23,400 720 20,700 800
R0.8 23,400 760 35,900 1,120 23,400 760 25,200 1,000 22,500 720 20,700 800
R1 22,500 950 31,500 1,260 22,500 950 25,200 1,100 17,100 720 20,700 800
R1.5 15,300 950 20,700 1,260 15,300 950 16,700 1,100 11,300 720 13,500 800
R2 11,300 950 15,800 1,260 11,300 950 12,600 1,100 720 10,400 800
R3 950 13,200 1,260 950 12,600 1,100 8,600 720 800
R4 9,000 1,150 11,600 1,260 9,000 1,150 1,000 5,900 880 8,900 950
R5 6,400 1,050 1,120 6,400 1,050 9,800 860 4,800 760 6,400 880
R6 5,200 1,000 9,400 950 5,200 1,000 7,800 520 3,900 740 5,300 840
4,100 Pf 6,700 Pf 4,100 Pf 5,400 Pf 3,000 Pf 4,600 Pf
Ap 0.2D Ap 0.1D Ap 0.2D Ap 0.1D Ap 0.2D Ap 0.05D
0.1D 0.05D 0.1D 0.05D 0.1D 0.02D
Depth of Cut
2DLE RPM : rev./min Feed : mm/min
Material Aluminum Alloy Expanding Material Aluminum Alloys Casting / Die Casting Magnesium Alloy / Copper Allloy
A7075 Si1 3% Copper Allloy / CFRP C1100
AZ91 / AZ80A / C1100
Regular Milling High Speed Milling Regular Milling High Speed Milling Regular Milling High Speed Milling
Outside Diameter RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED
0.1mm 32,000 35 45,000 120 32,000 35 45,000 120 32,000 35 45,000 100
0.3mm 32,000 60 45,000 300 32,000 60 45,000 300 32,000 60 45,000 210
0.5mm 28,800 90 45,000 500 28,800 90 45,000 500 28,800 90 45,000 390
0.8mm 28,800 120 45,000 700 28,800 130 45,000 700 23,000 110 45,000 500
1mm 28,800 170 45,000 900 28,800 170 45,000 900 20,700 125 37,800 630
1.5mm 28,800 230 40,500 1,100 28,800 230 40,500 1,100 14,000 130 26,700 630
2mm 23,000 270 30,600 1,100 23,000 270 30,600 1,100 10,400 135 21,600 675
3mm 15,300 460 20,700 1,100 15,300 460 20,700 1,100 200 15,300 675
4mm 11,300 470 15,300 1,100 11,300 470 15,300 1,100 7,200 210 11,700 675
5mm 490 12,200 1,100 490 12,200 1,100 5,400 225 675
6mm 9,000 540 10,000 1,100 9,000 540 10,000 1,100 4,300 225 9,000 675
8mm 7,700 600 1,200 7,700 600 1,200 3,600 300 7,200 720
10mm 6,000 650 8,200 1,400 6,000 650 8,200 1,400 2,600 300 5,900 800
12mm 4,500 690 6,000 1,500 4,500 690 6,000 1,500 2,100 320 4,300 850
3,100 Ap 4,500 Ap 3,100 Ap 4,500 Ap 1,600 Ap 3,200 Ap
Ap Ae 0.3D Ap Ae 0.15D Ap Ae 0.3D Ap Ae 0.15D Ap Ae 0.3D Ap Ae 0.1D
1.2D 0.1D 1D 0.1D 1.2D 0.1D 1D 0.1D 1D 0.1D 1D 0.05D
Depth of Cut
259 JJ TOOLS
